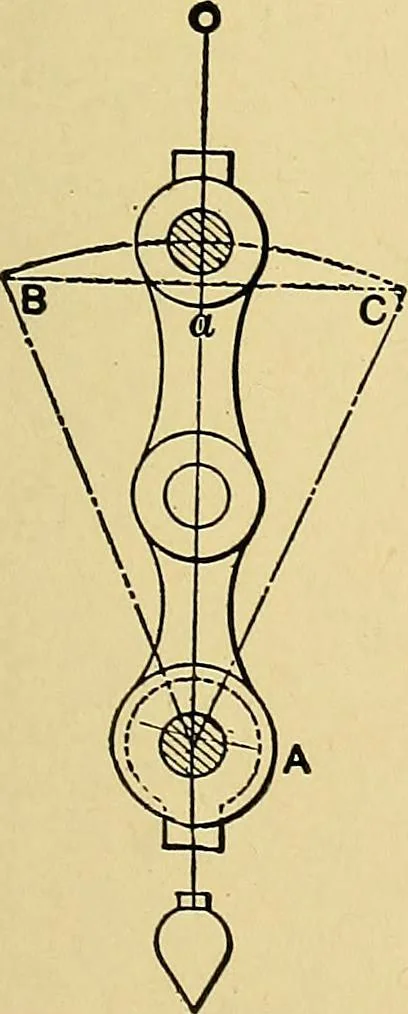

will be away from the crank, or contraryto the forward stroke of the piston, as shown in Fig.104; and couple the eccentric rod f to pin a of therocker. Then leaving the engine on the dead center,roll eccentric F further around the shaft toward thecrank until the outer edge of valve port p… … FIG. 103. 98 VALVE SETTING V
