Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 128

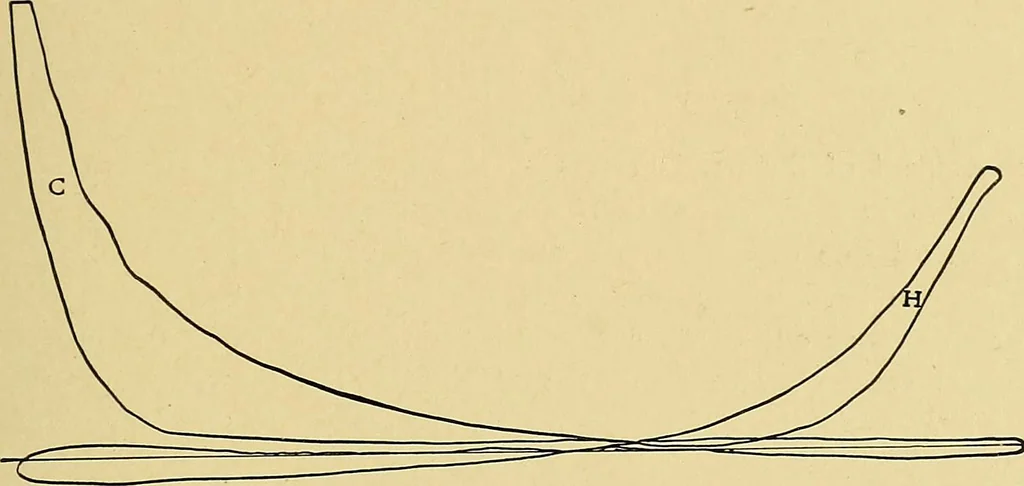

for their guid-ance when first setting up the engine, extracts of which, given herewith,should with the foregoing afford a working knowledge of the adjustmentof these engines, under any conditions, to the operator. The location of the governor case is determined by placing the engineon one dead… … FIG. 118. moved) the eccentric is thrown back and forth across the shaft, no endmotion is given the valve rod. At this place tighten the governor casefirmly upon the shaft and roll the shaft to the opposite dead center andagain move the eccentric back and forth across the shaft, and if there is…
Steam-engines
