Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 140

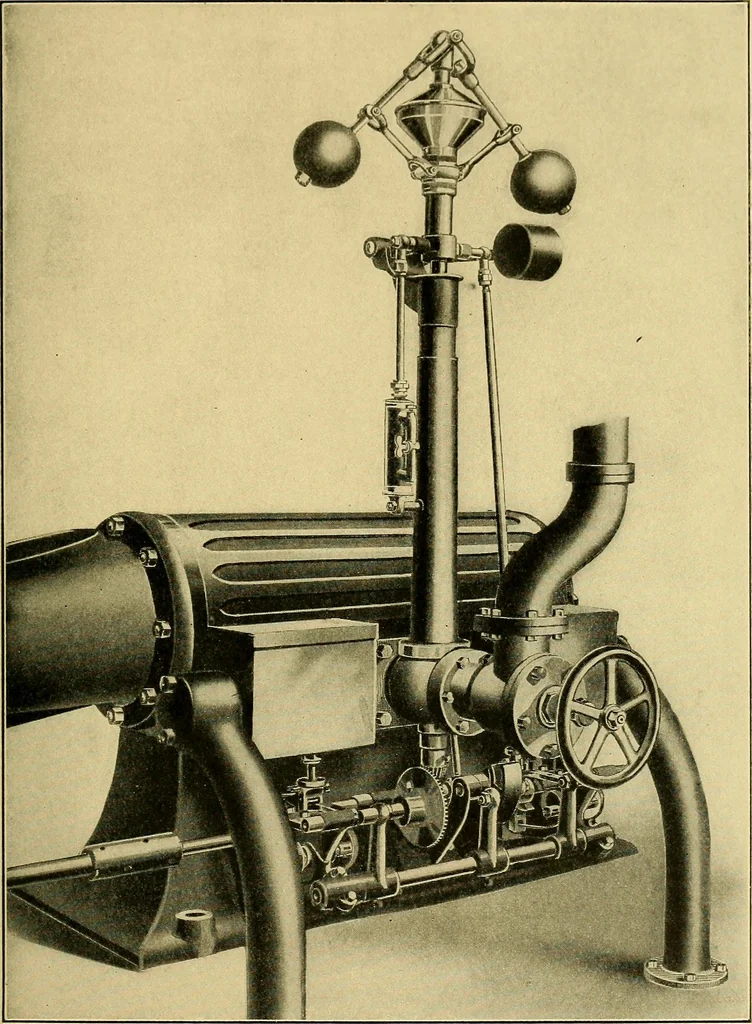

Compression IncreaseInside Lap Is laterCeases sooner Occurs earlierContinues longer Is unchanged Engines atsame point IncreaseOutside Lap Unchanged Begins as beforeContinues longer Occurs laterCeases earlie Begins soonerContinues longer IncreaseTravel Begins soonerContinues longer Begins… … FIG. 132. — VALVE GEAR OF THE PUTNAM ENGINE. XIII THE PUTNAM ENGINE.* The high-pressure, variable cut-off engine built by the Putnam Ma-chine Company, of Fitchburg, Mass., and known as the Putnam engine,presents distinctive valve-gear features which should interest the operatingengineer. There are…
