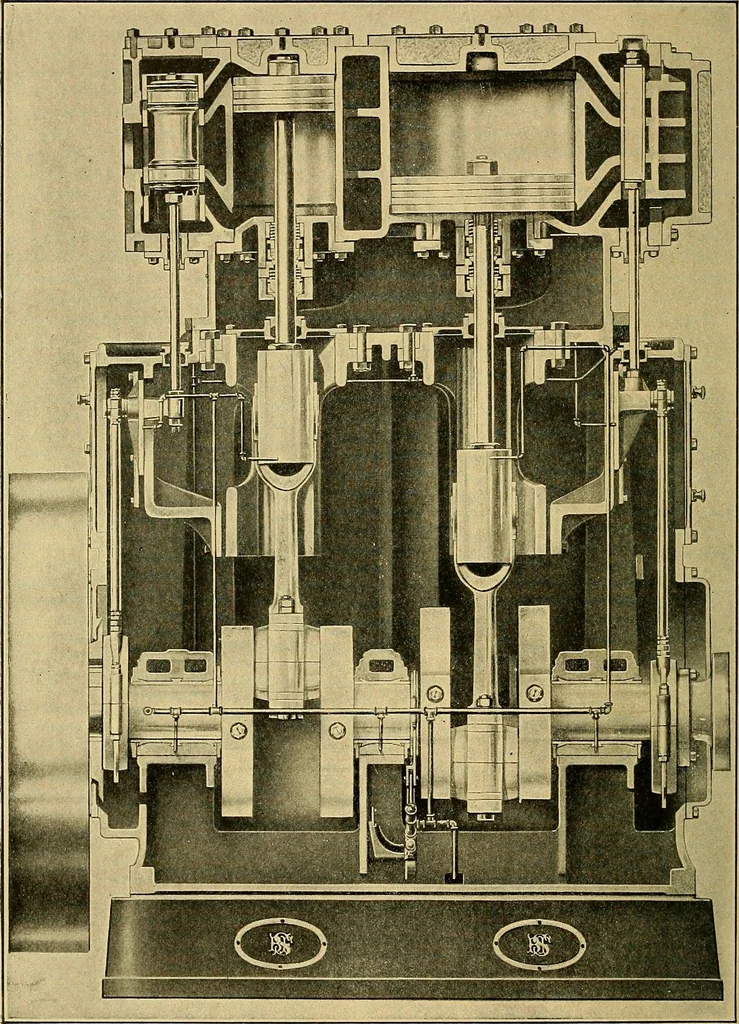

alve-rod guide, and the eccentric; these areshowTL at A, B, and C, Fig. 141, and at D, Fig. 144. The low-pressurecrank pin should be put on the top center, following any of the approvedmethods. A simple operation which quickly gives the position with suffi-cient accuracy for preliminary valve… … FIG. 139.—SECTION THROUGH CYLINDERS AND VALVES. THE STURTEVANT COMPOUND ENGINE 137
