Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 167

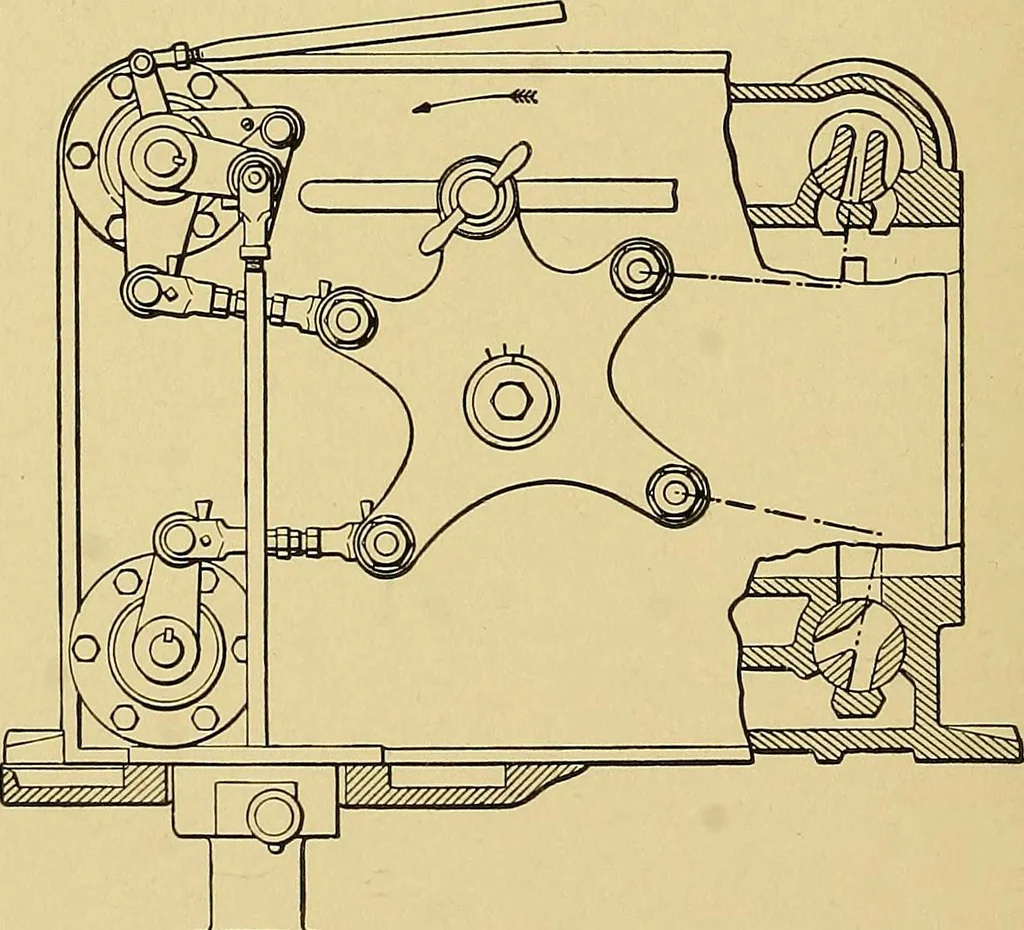

those illustrated in Figs. 155 and 156 in having less heavy wrist plates tosuit higher engine speeds, and in being equipped with double-ported steamand exhaust valves. … I I FIG. 161. — RIGHT-HAND SIDE. REYNOLDS (1890) AND GIRDER FRAME CORLISS ENGINES 157 Fig. IGO shows the wrist plate in its central position, with the valveslapped. The steam is admitted over and through the valves, the steamedges of the steam valves being shown at A and the working edges of thetwo…
Steam-engines
