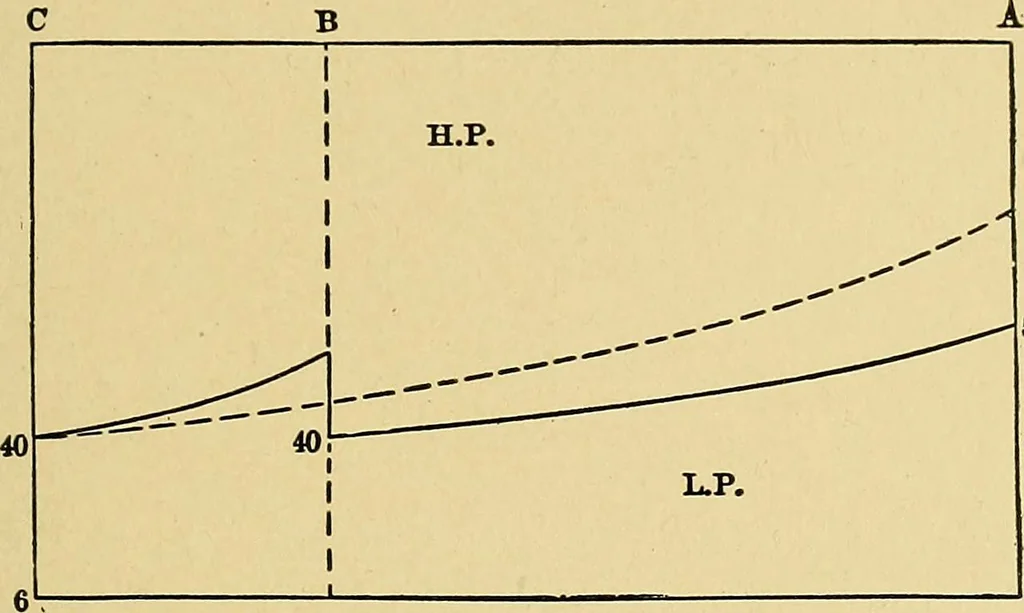

linderson the other side and intermediate spaces are filled with steam at the low-pressure terminal, or 40 lbs. The total amount of steam is then 120 X 1 ==40 X3.9 = Total 120156 276 THE DUPLEX PUMPwhich divided by the volume, 4.9, gives a resulting pressure of 276 187 4.9 = 56.5 lbs. as shown in… … 56.5 FIG. 190.— CROSS EXHAUST OPEN. fiom the left-hand high-pressure cylinder flows into the intermediate spaceand raises the pressure to 56.5 lbs. in order to help out the right-hand low-pressure piston. Fig. 190 shows this action clearly, but in practice the rise in pressurewill not be as abrupt…
