Valve setting: simple methods of setting the plain slide valve. Meyer cut-off. Corliss. and poppet types (1908)
Collins, Hubert Edwin, 1872- · New York [etc.] Hill publishing company · leaf 33

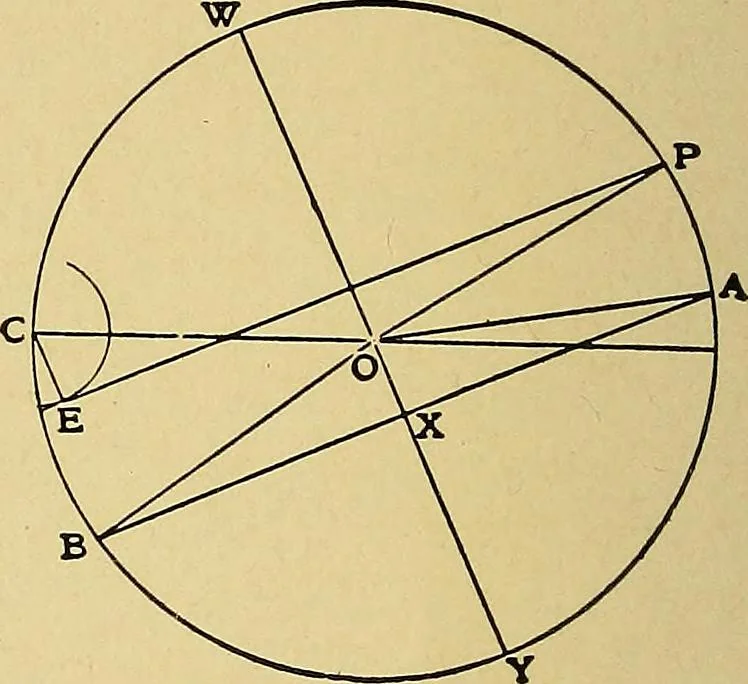

FIG. 20. FIG. 21. finish the diagram by drawing in the other valve circle and the two lapcircles, and laying off on the crank circle the points corresponding to theother valve movements. Problem V. Given the cut-off, release, compression, and width ofport. It is assumed that the width of the port…
