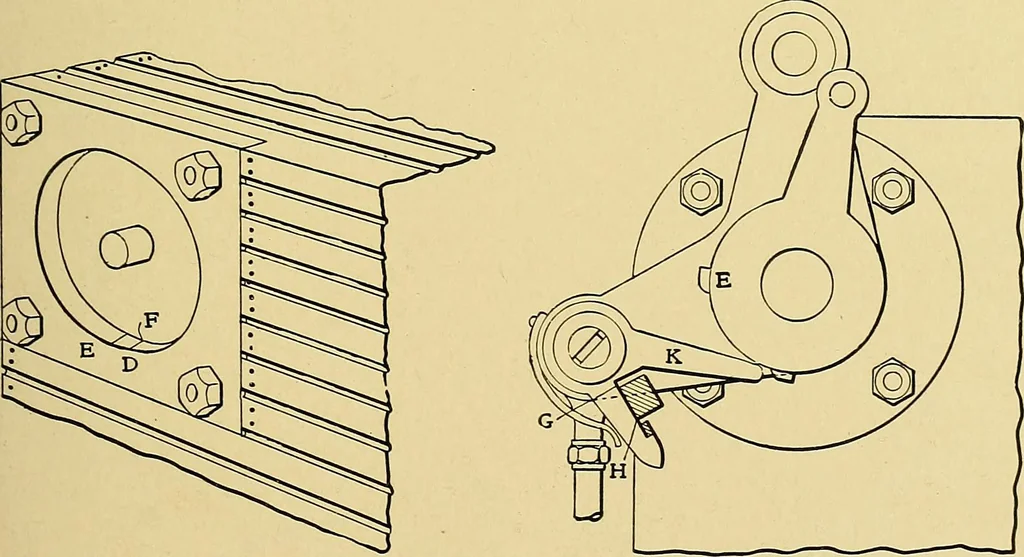

IG. 58. — WRIST PLATE INEXTREME POSITION. by the builders, as shown in Fig. 59, where F is the working edge of thevalve, E is the edge of the steam port and the distance E D is the lapof the valve. The proper lap to give the valves can be found in theaccompanying table, and the radial arms should… … FIG. 59.— SHOWING MARKSON VALVE SEAT. FIG. 60. — ADJUSTING CLEARANCEAT CATCH BLOCK. just the length of the dashpot rod so there will be an equal clearancearound the catch block, as shown in Fig. 60. Turn the wrist plate tothe other extreme and adjust the other dashpot rod in the same manner. 60…
