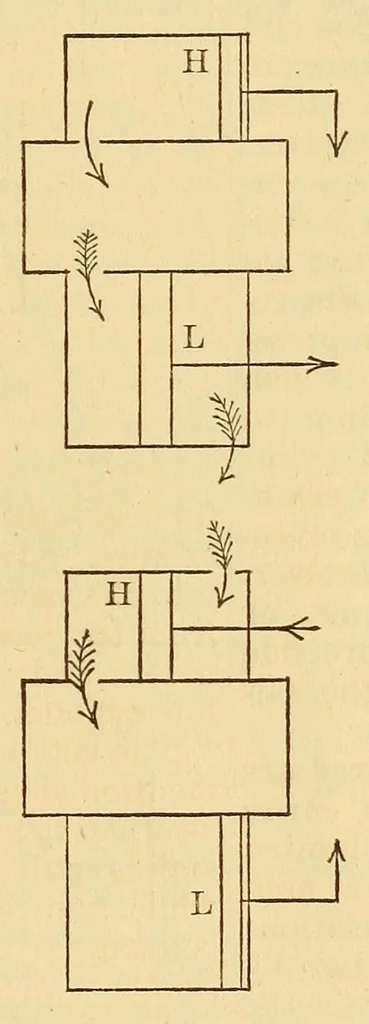

INE. for this side of the engine. In the combined action of both 2nd*- sides, it appears from the fact that these options are inde- pendent of each other, there results four possible valve move- ements, two of which, as above mentioned, are selected for in- vestigation and comparison, and are shown… … of Fig. 13 be designated as A, B, C, and D, as shown. Then in 1st : for the A rela- tion we have H moving with 1 i high steam on one side and ex- ii i haust on the other. These are necessary conditions while H moves, and hence the arrows are feathered. The exhaust, how- r1 D ever, is shown as into…
