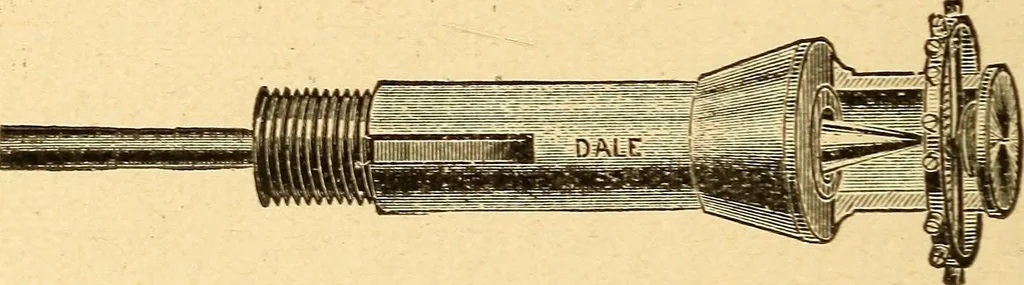

Fig. Jumbo Chuck. Chuck, and consists of a chamber having a central hole infront and a pump center at the back for the centering of thestaff. The sides of the chamber are cut away to allow ofthe insertion of the balance and, when it is in position, with … Fig. 78. Balance Chuck. one end projecting through the central hole and the otherheld by the pump center, a sliding cover is pushed forwardso that the balance is completely inclosed and protectedfrom accidental injury. Its construction will be readily un-derstood from the drawings. Fig. 78 is…
