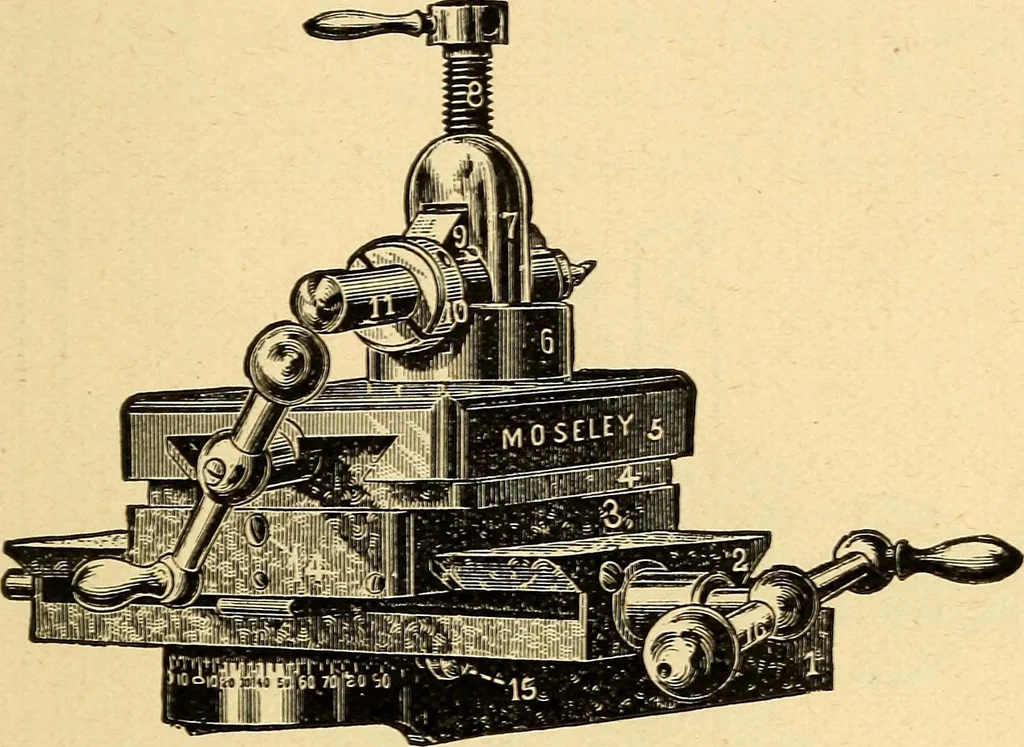

a—the facesquared at an angle and the hole turned straight. They usein the long slides an improved detached nut, and the tool orcutter will not show ridges or grooves in the work at each THE AMERICAN LATHE. 11^ revolution of the screw. The compound tool post is so ar-ranged that an ordinary square… … Fig. 97. Moseley slide rest with two slides. 1. Base. 2, Lower Slide.3, 4, Center Swivel. 5, Upper Slide. 6, Tool Post Collar. 7, Tool Post.8, Binding Screw. 9, Gib. 10, Quill with Eccentric Hole. II, Tool.15, Lower Swivel Binding Screw. screws have graduated collars on the end of lead and…
