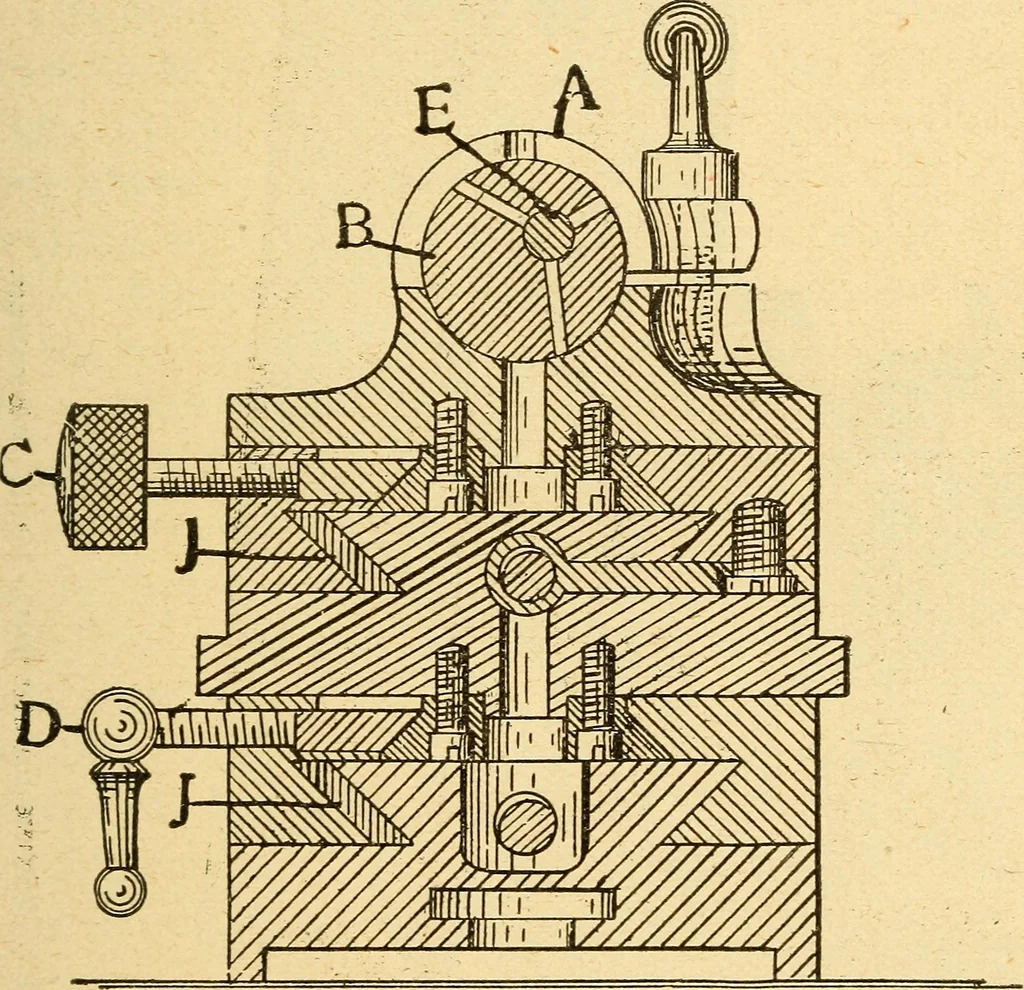

THE AMERICAN LATHE. 1 23 fastening for the various attachments, which will be dis-cussed later. The tool may be taken out, sharpened andreplaced without changing the angle or height. Figs. 102, 103 and 104 are longitudinal and cross sectionsand elevation of the Rivett slide rest. As will be seen… … Fig. 103. Cross Section of Rivett Slide Kest. A, Tool Post. B, Ele-vating Quill. C, Binding Screw of Tool Post Swivel. D, Binding Screwof Swivel between Slides, J, J, Splines, E, Tool. lost motion; the swivels are conical and screwed into posi-tion ; the tool post covers the top of the upper slide…
