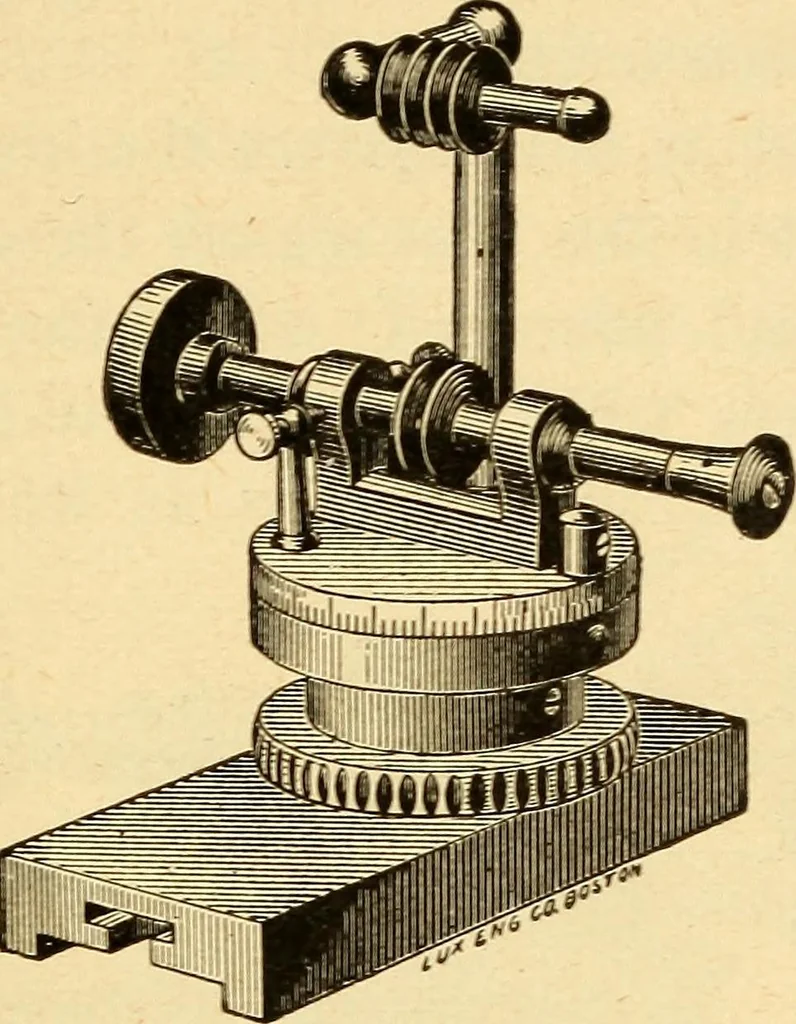

eptedmethods. Its capabilities were soon perceived, and in 1882the much more elaborate device shown in Fig. 152 suc-ceeded it. This consists of a separate shoe, carrying a turn-table,graduated in degrees, on which is mounted a yoke pivoted THE AMERICAN LATHE. l89 at the bottom and carrying an… … Fig. 152. Hopkins Pivot Polisher. pulleys allowed a considerable movement of the traversespindle without interfering materially with the tension ofthe driving belt. This design has remained practically un-changed to the present day. The idle pulleys have been de-
