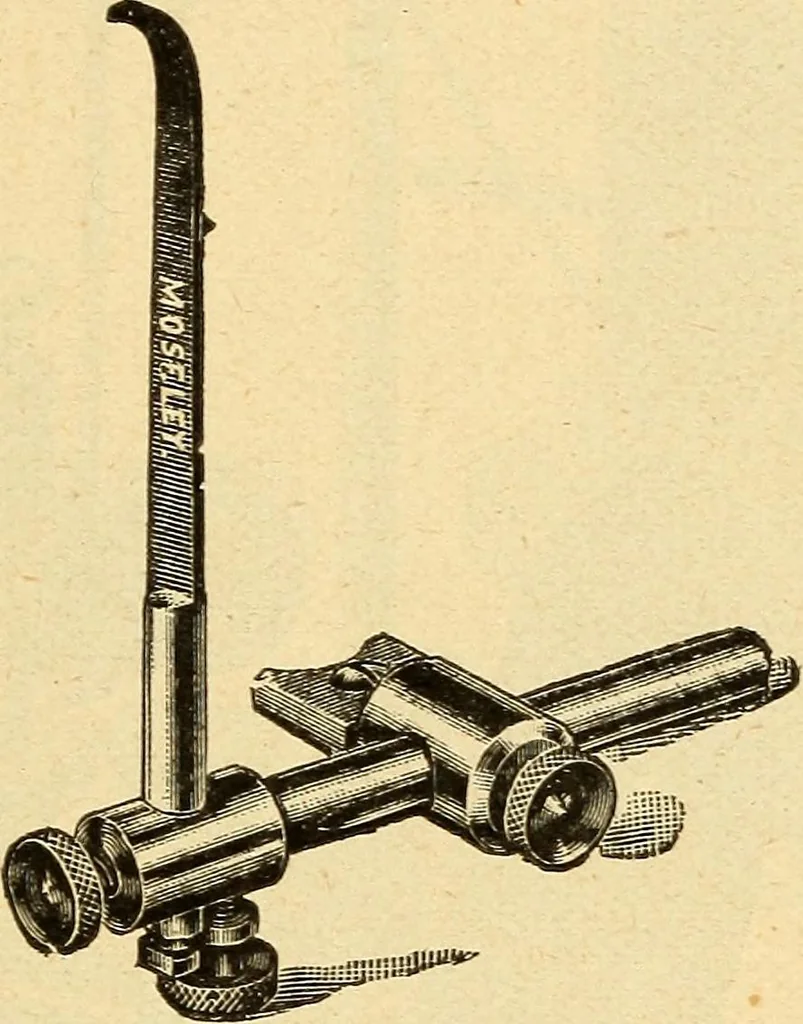

. THE AMERICAN LATHE. 219 important that a close fit be secured here, as any loosenesswould result in angular motion between the spindle and in-dex, and thus cause irregular spacing of the teeth on thewheel that is being cut. The index is kept from turningby a latch (Fig. 197), which is inserted… … Fig. 197. Latch for Index Plate. The Rivett lathe uses a different system, in which thework is held in a quill in the slide rest, which is turnedvertically by means of an adjustable graduated knee carry-ing a shoe to fit the slide rest. (Fig. 199 to Fig. 201.) The wheel cutting attachment consists…
