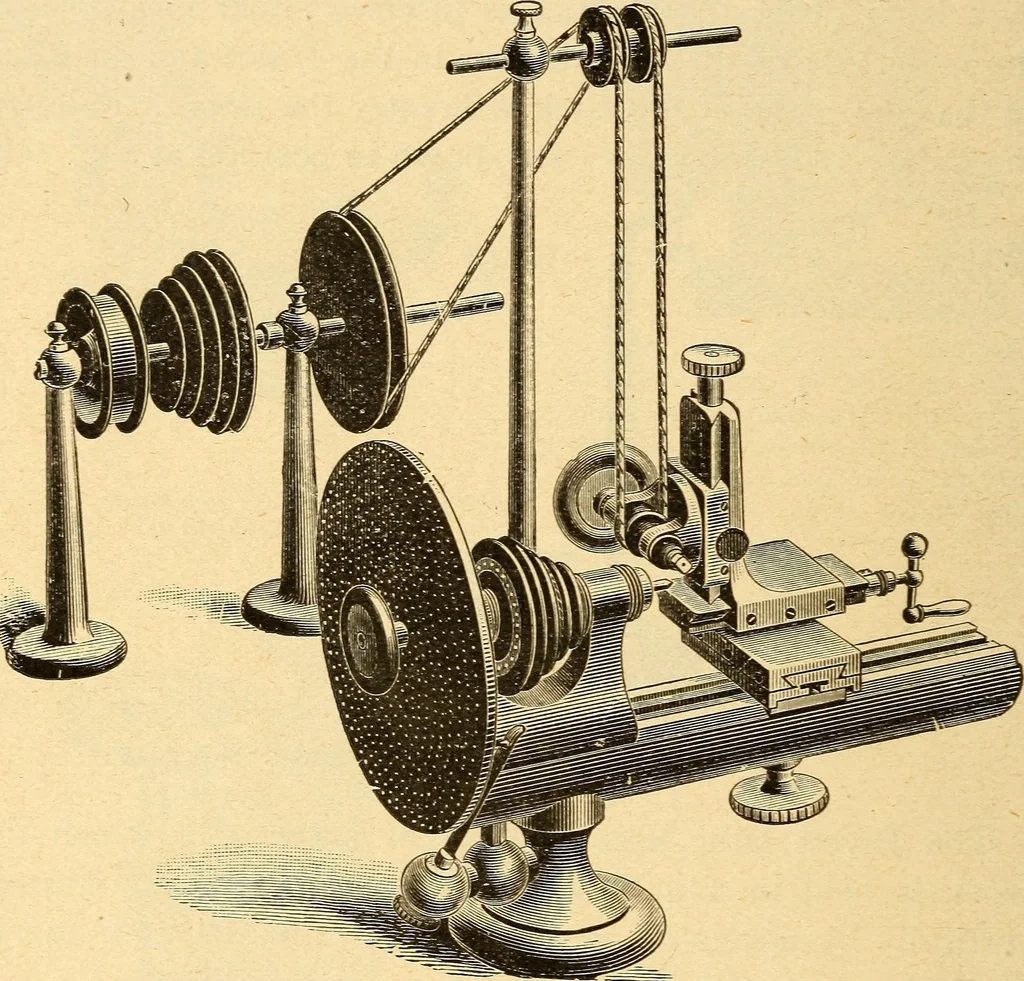

d from the solid spindle, which makes it very firm.The revolvable tailstock fits the bed of the lathe and is se-cured to it with the same firmness as the headstock. The up-per part is made to fit the slide rest. The upright is so grad-uated that it can be set at any angle required, and there is 220… … Fig. 198. Webster-Whitcomb ready for work, showing large indexplate, lathe, countershaft, idler pulle}Ts, etc. The spindle of the wheelcutting attachment is shown horizontal for the purpose of cuttingspiral stem winding wheels, the spiral being secured by swivelling theslide rest, the cutter acting…
