The watchmakers' lathe, its use and abuse; a story of the lathe in its various forms, past and present, its construction and proper uses (1903)
Goodrich, Ward L. [from old catalog] · Chicago, Hazlitt & Walker · leaf 78

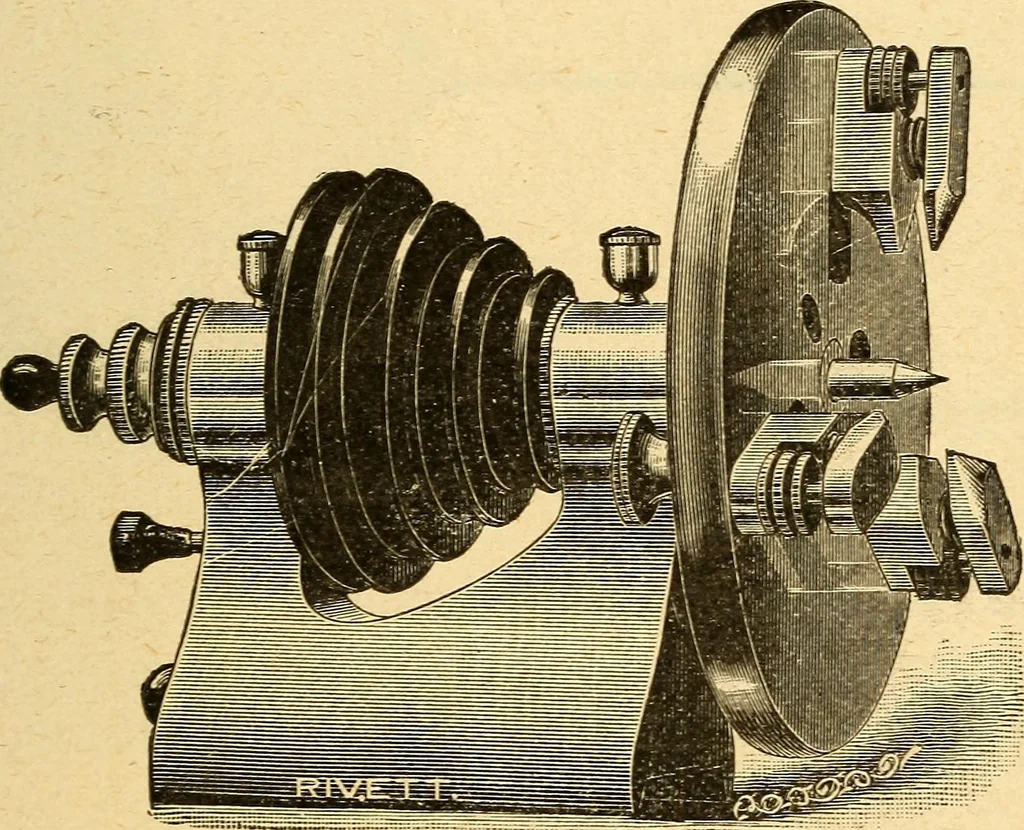

rtainto make trouble for yourself. If you cannot get a fit withthe wheel chuck do not use it, but cement the wheel on acement chuck, or use the face plate, Fig. 50, if the wheelis large enough so that the plate will take it. CHAPTER IV. FACE PLATES AND LARGE CHUCKS. Work that is larger than the… … Fig. 50. LTniversal Head. its adaptations for watchmakers, in Fig. 50, the universalhead, and Fig. 51, the universal face plate. The universalhead, Fig. 50, is the truest, most durable and most expen-sive of these devices. It consists of a complete, independ-ent headstock for the lathe, having the…
Clocks and watches · Lathes
