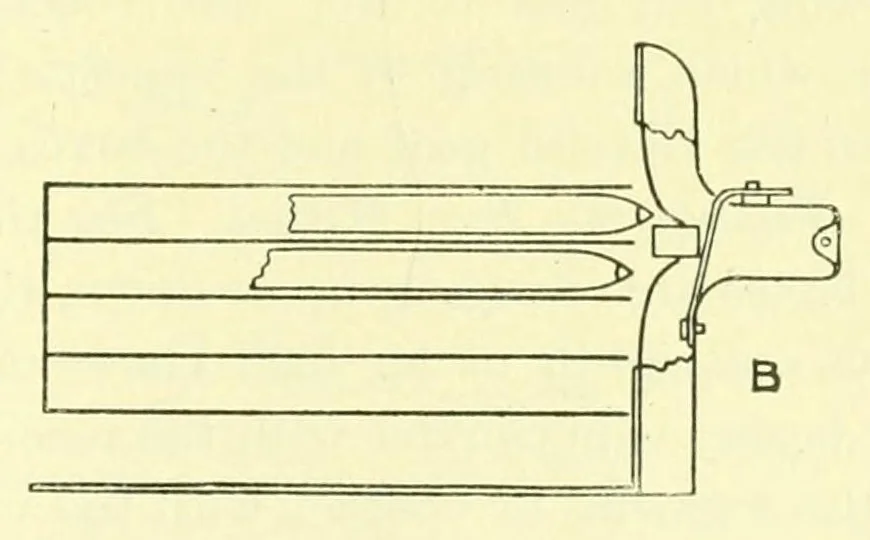

, out of line witli the back of the box. The parts are some- times fitted in this man- ner in thi' machine slioj), but if they are not, the fixer should see to it that they are. f Z> Patent buffers and checks are made to be fitted at the end of the box frame behind tlie picker, but in place of… … when the Ijoxes change if Fis- 109. Guide Plates. the picker is too far back from the face of the slide. If the picker is allowed to remain in that position, the ti}) of the shuttle eventually wears fiat with sharp edges which cut the warp yarn. Occasionally the shuttle being back too far will…
