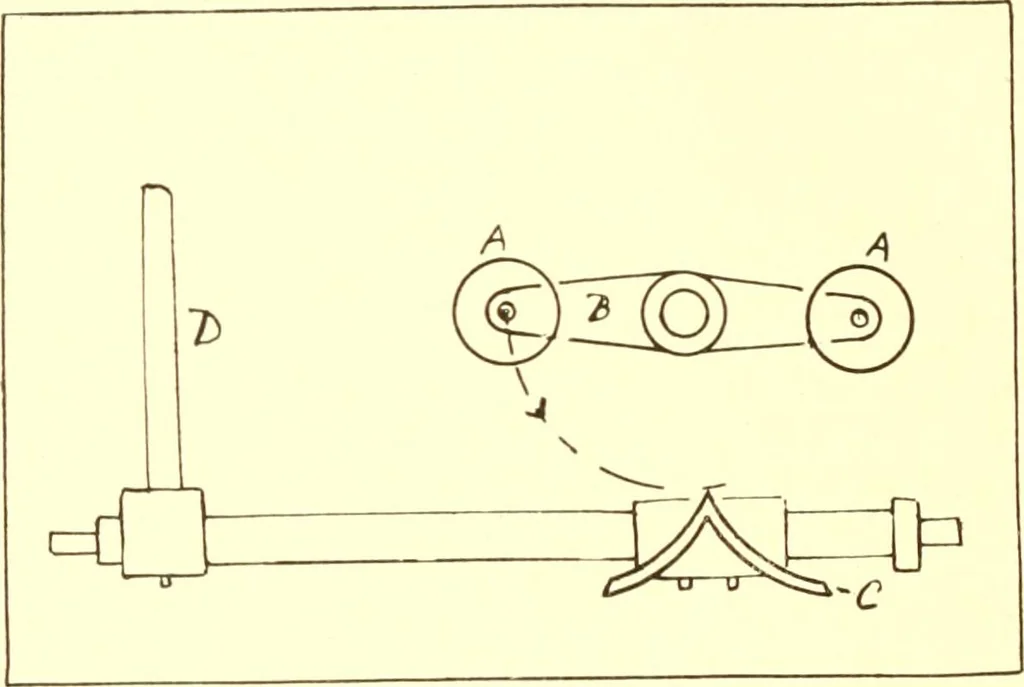

ectlyin front of dagger. Timing of Filling Stop Motion.—With crank shaft on bottorn center have tlie dagger in contact with receiver and feelerwires just above the race plate. Adjustment for lift of feeler S6 WEAVIXG PLAIIN^ AND FANCY. wires is made by upright rod A. When this rod is vertical,the… … Fig 22. BAT WING PICK. This picking motion is also called the ball and shoe pickillustrated at Fig. 22. The balls A are fixed on end of armB. As the arm is on pick can shift a ball comes in contactwith the shoe C every pick. The shoe is constructed so thatthere will be a gradual incline from the…
