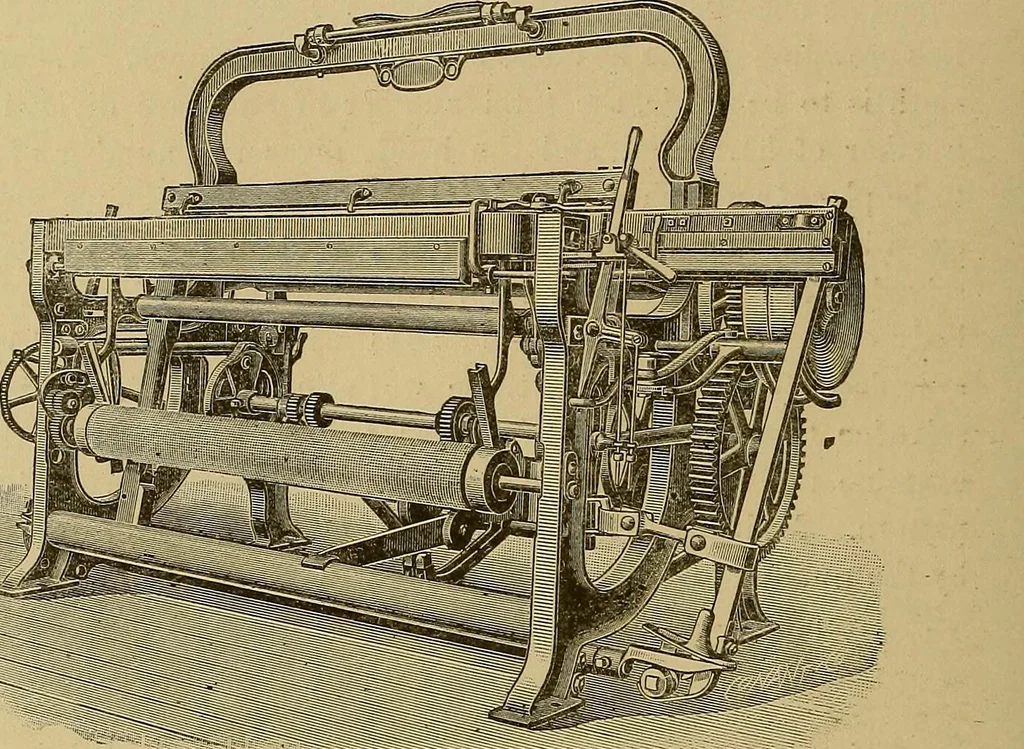

iXAb = 184_4i>46 = l84_4»46il84 Pig. 47.- Drawing Draft for 11 Harnesses. 54 ends in a pattern. 46 patterns. 54 X 46 = 2,484 ends. Heddlesrequired on each shaft. Harness No. 11 — 138 heddles,10 — 184 9—184 8 — 184 7—184 6 — 184 5 — 184 4 — 184 3— 92 2 506 ) It I 4gQ i< > add a few extra… … Fig. 48. Modern Interchangeable Plain Loom. THE PLAIN POWER LOOM. There are mauy kinds of plain power looms on the market, butat the present time the demand for such a diversity of cloth neces-sitates so much changing in mills that a loom should be bought inwhich is taken into consideration, this…
