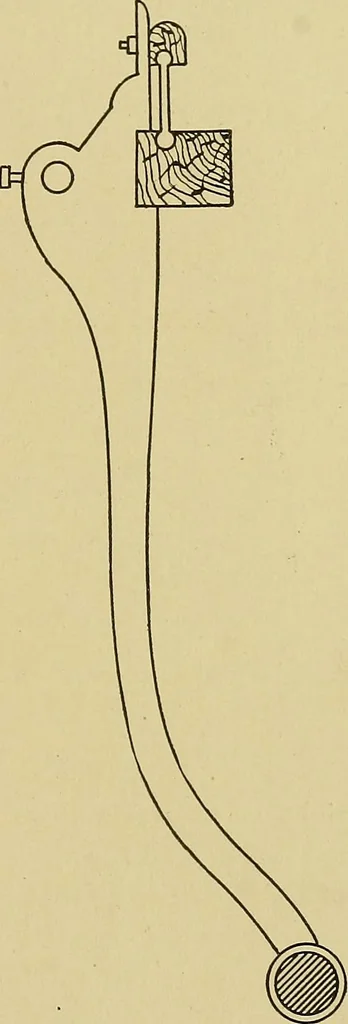

An illustration from Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving, 1909, leaf 104
es inthe least it binds the shaft. This partconstructed in the following manner isrepaired in much less time: (see Figs. 50and 51). If the lower portion of the laysword is bolted to a bracket, which is set-screwed to the rocker shaft, it is a com-paratively easy matter to loosen the bracket from… … Fig. 49. Lay Sword withEocker Sliaft Connections. 91 84 WEAVING. or nose. A circular plate is compounded with the boss, and throughwhich the shaft passes, this portion being fixed to the shaft. At-tached to this fixed portion should be the outer portion of the cam,which comes in contact with the…
