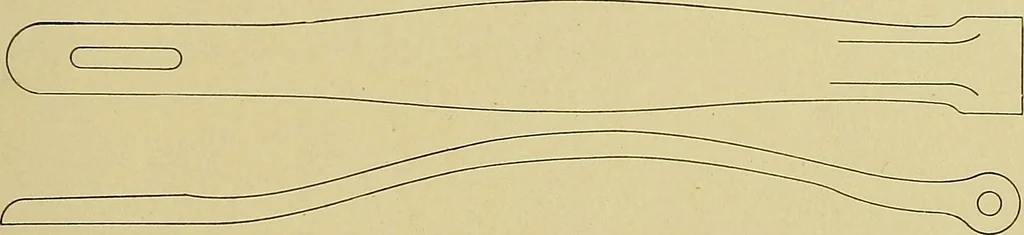

in placewhen in the box. The jjart which a particular binder plays in theproduction of a loom, is not taken sufficiently into account, andcareful consideration of the following is consequently necessary.There are two distinct shapes; we will term them the bow orblunted swell, and the gradual… … Fig. 86. BluDt Shaped Binder. access ; consequently the shuttle strikes hard against the swell inentering. More power is required to drive the shuttle when thisswell is used, because it comes suddenly in contact with a toogreat resistance. This will in turn cause undue friction on thebinder pin,…
