Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 209

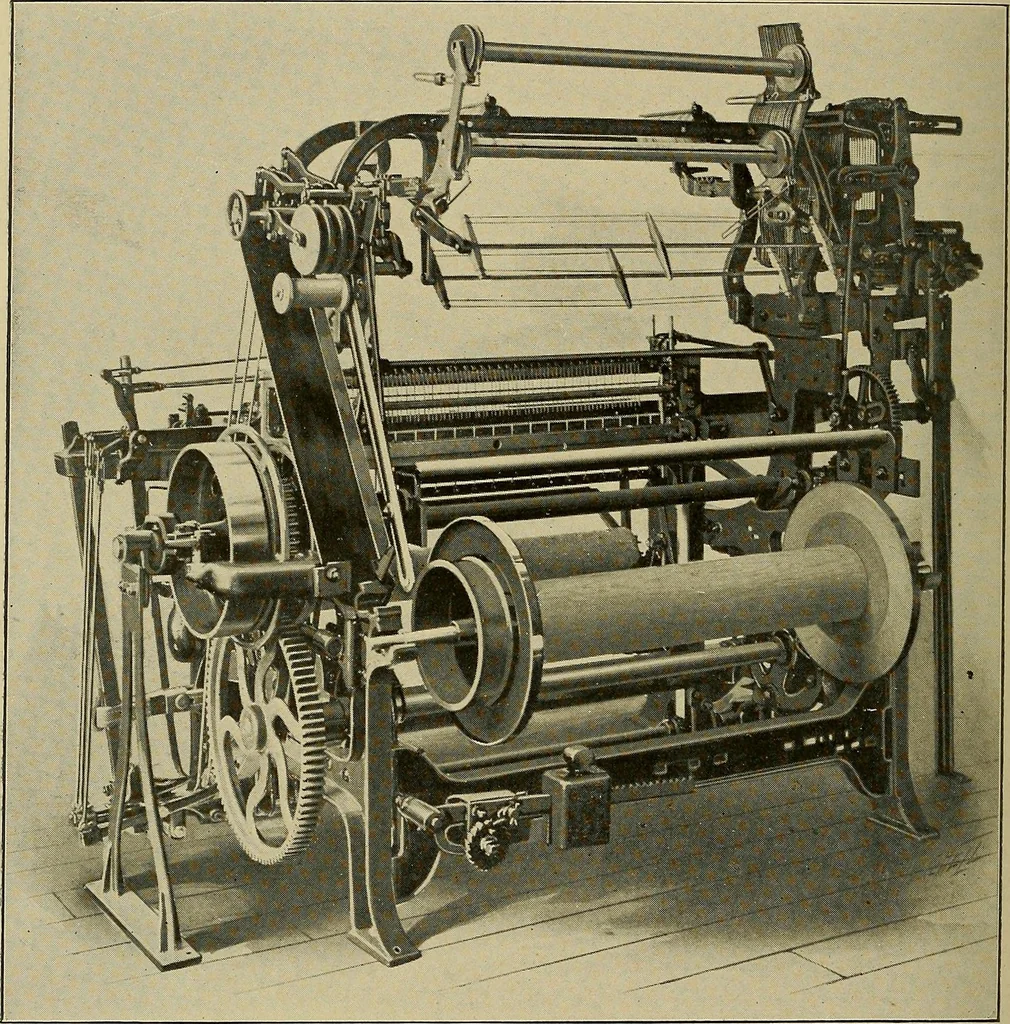

ble to the 10-pick,multiplier, as 13 box chain plus 10 pick multiplier = 18 bars,total required, using a 10-pick multiplier; and 16-box chain plus20-pick multiplier = 26 bars, total required using a 20-pick mul-tiplier. The length of the multiplier chain, however, should notreceive too much… … REAR VIEW OF 3-BAR LAPPET LOOM WITH PLAIN LAY Crompton & Knowles Loom Works WEAVING 173 As a pattern where a larger multipler will allow the use of ashorter box cham, the one worked out as follows is a good one. 16= Pick 8- -Pick Picks. MUI TIPLIER. MULTIPLIEK, 26 Dark Green 6 4 16 Medium Green…
