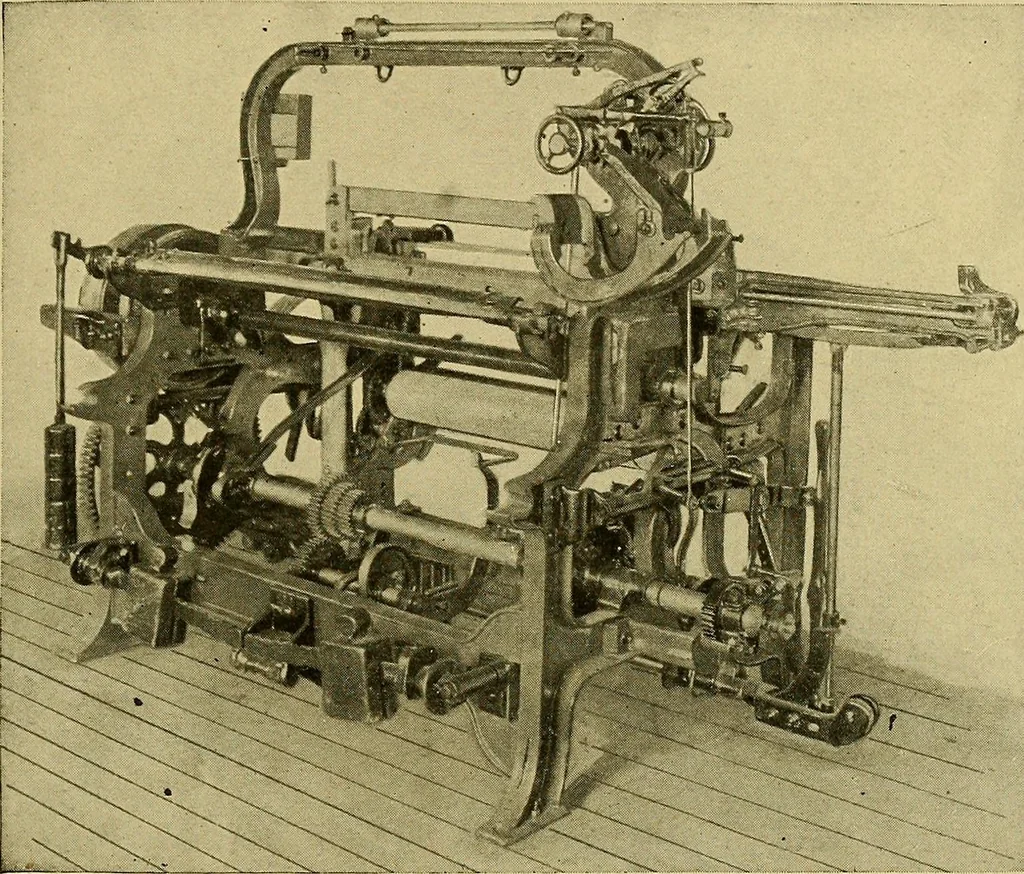

e projections areof such form as to fill the spaces in the small segment gear, and. 194 WEAVING 181 act the part of a broad tooth, meshing with the spaces in the largesegment gear. One side of the slide is twice as long as the other, and conse-quently when one projection is filling a space on the… … Fig. 118. Crompton Gingham Loom. to one of the small levers in the upper motion under which therisers in the chain pass. The flat portion of the projection, whenin the small segment gear, almost touches the teeth of the largesegment gear, so that the projection catches when the smallsegment gear is…
