Weaving; a practical guide to the mechanical construction, operation, and care of weaving machinery, and all details of the mechanical processes involved in weaving (1909)
American School of Correspondence, Nelson, H. William (Hector William), b. 1869 · Chicago, American School of Correspondence · leaf 254

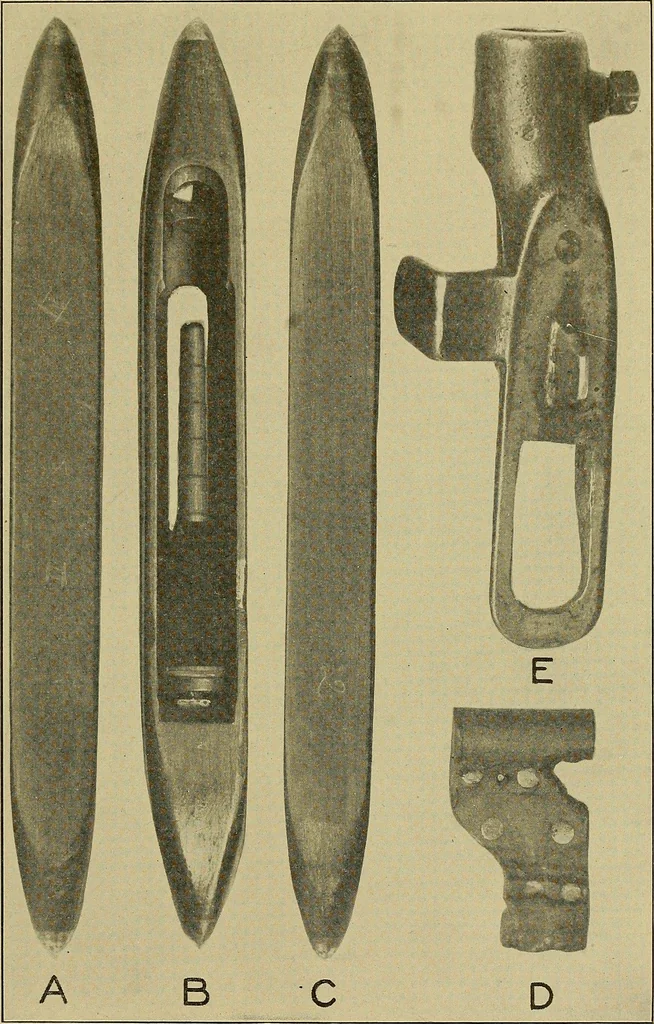

hat it often flies out. Ifthe bottom shed is too high off the race-plate, the shuttle is thrownup as it leaves the box; a sunilar result occurs from cause 59. Aworn spindle stud is the general cause of persons being mjurecl byshuttles flying out. When the stud is Avom and the picking-stickworks… … Fig. 134. Worn Parts of Loom Causing Stiuttle to Fly Out. 327 214 WEAVING the consequence is, instead of tlie shuttle being controlled in ameasure, it is away from its support and will fly out. A commonpractice is to pack the worn stud with leather. It is dangerous tofix because the leather has a…
