Wilson’s Carpentry and joinery / by John Wilson (1891)
Wilson, John · Manchester [England] : Percy Bros. · leaf 18

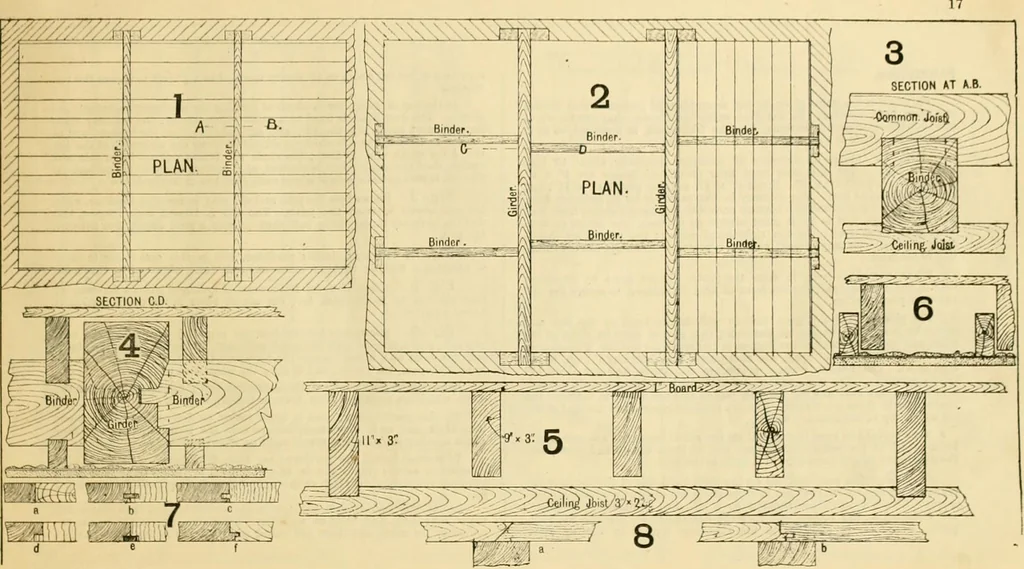

nts are shown. The one at a is bevelled andonly shows two nails at each joint; b shows a heading joint used in a floorthat has to have secret nailing. The board with the tongue on is fixed, andthen the other is driven on. In a common square heading joint, four naibare used ; this looks very… … Partition is the name given to the assemblage ol materials that divideEone room from another. In the four examples shown, they are known asself-supporting trussed partitions, i.e., the framework is arranged so as totransmit the whole of the weight direct to the walls. Fig. 1. Shows an ordinary 4…
Carpentry · Joinery
