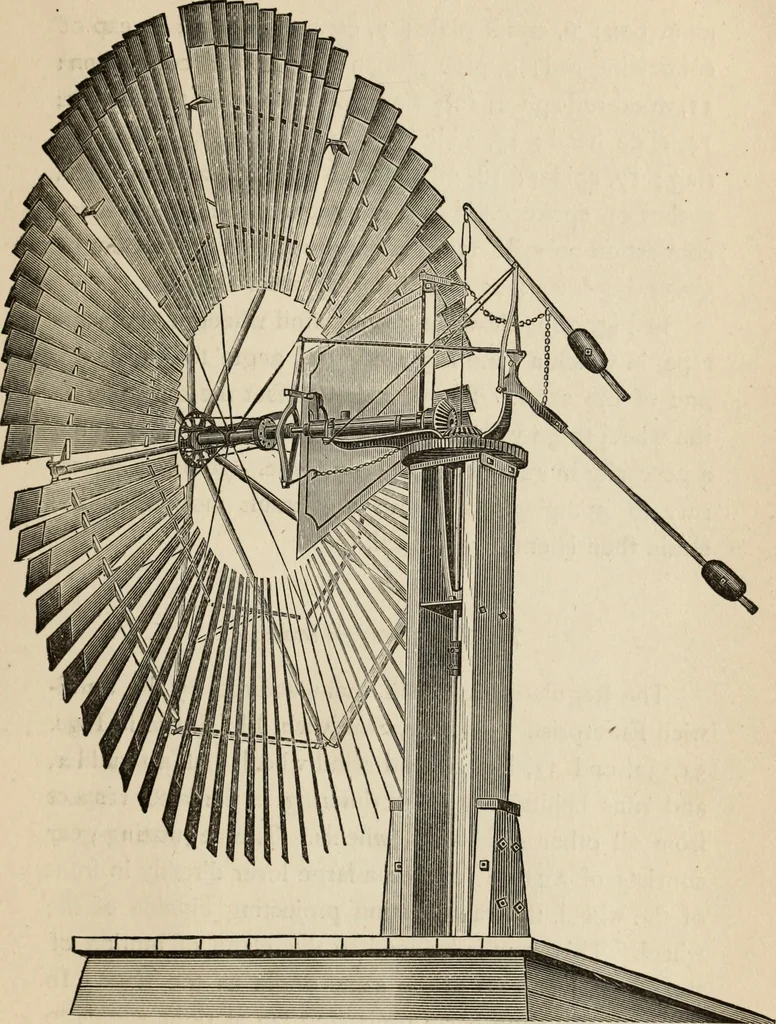

same direction, thewheel, as will be seen in Fig. 29, is a considerable dis-tance from the axis of the mast; and consequently thereis an overhang, which has a tendency to bring an unequalstrain on the main bearing and turn-table. The face ofthe wheel being behind the mast, and most of the… … IlG. 30. I08 THE WINDMILL AS A PRIME MOVER. main box; 6, crank plate ; 7, connecting-rod ; 8, cap ofconnecting-rod ; 9, pipe pitman ; 10, pitman connection ;11, wood-rod splice; 12, pump connection; 13, twin levers;14, slide head; 15, slide-head segments; 16, slide-headring; 17, spider; 18, outside…
