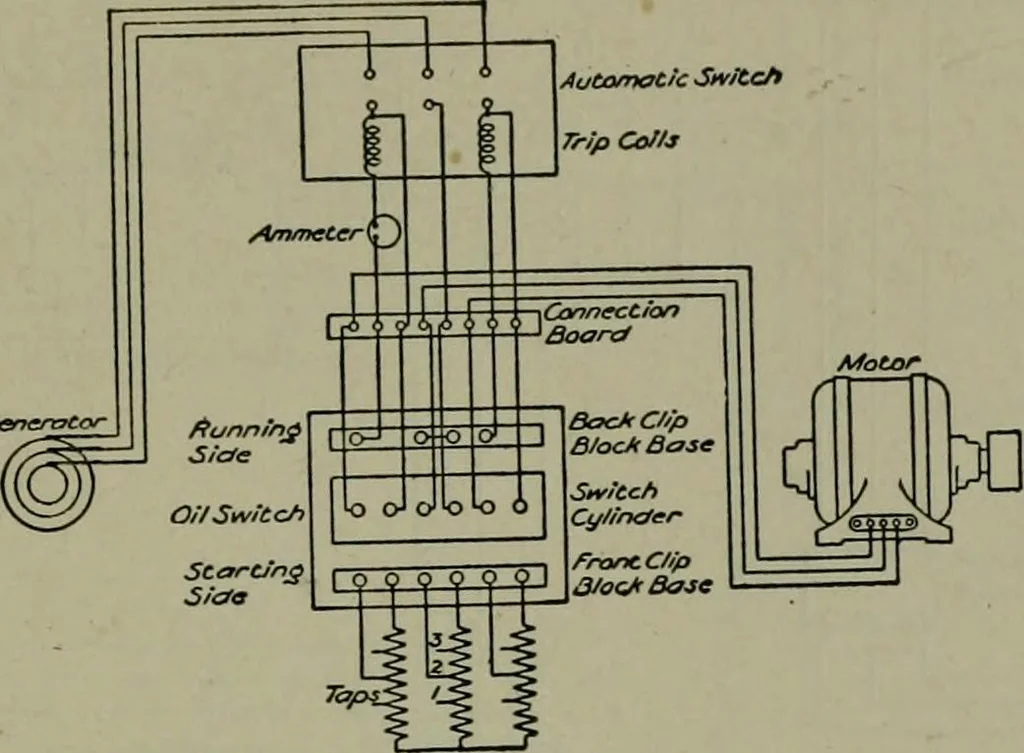

Fig. 168.—Polyphase induction motor. Starting panel. ALTERNATING CURRENT MOTORS AND SPEED CONTROL 105 Trip Coll-t … Fig. 169.—Connections for the auto-starter panel shown in Fig. 167 when used with three-phase motor. Rating: 100 amp. per phase, from 1000 to 2500 volts.
