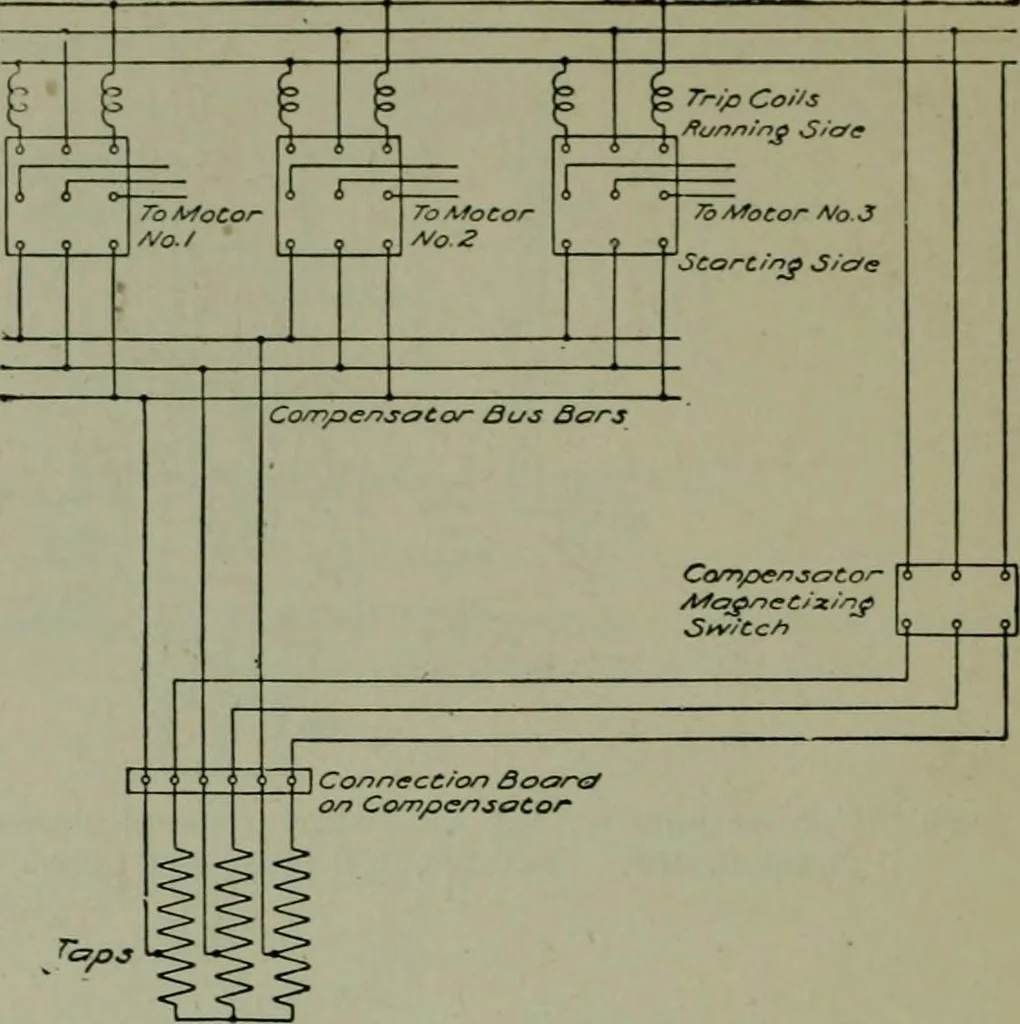

To /^ocor 3 Connccc/on Soeyr-<^or> CofrtpensaCon … y Oo^neccion y ConnecCion Fig. 171. Fig. 172. Fig. 171.—Connections for starting three-phase induction motor where the starting switchis external to the auto-transformer case. Rating: 300 amp. per phase up to 550 volts, 100amp. per phase above 2500 volts. Fig. 172.—Connections for starting any…
