Wiring diagrams of electrical apparatus and installations (1913)
McGraw-Hill · New York, McGraw-Hill Book Company · leaf 123

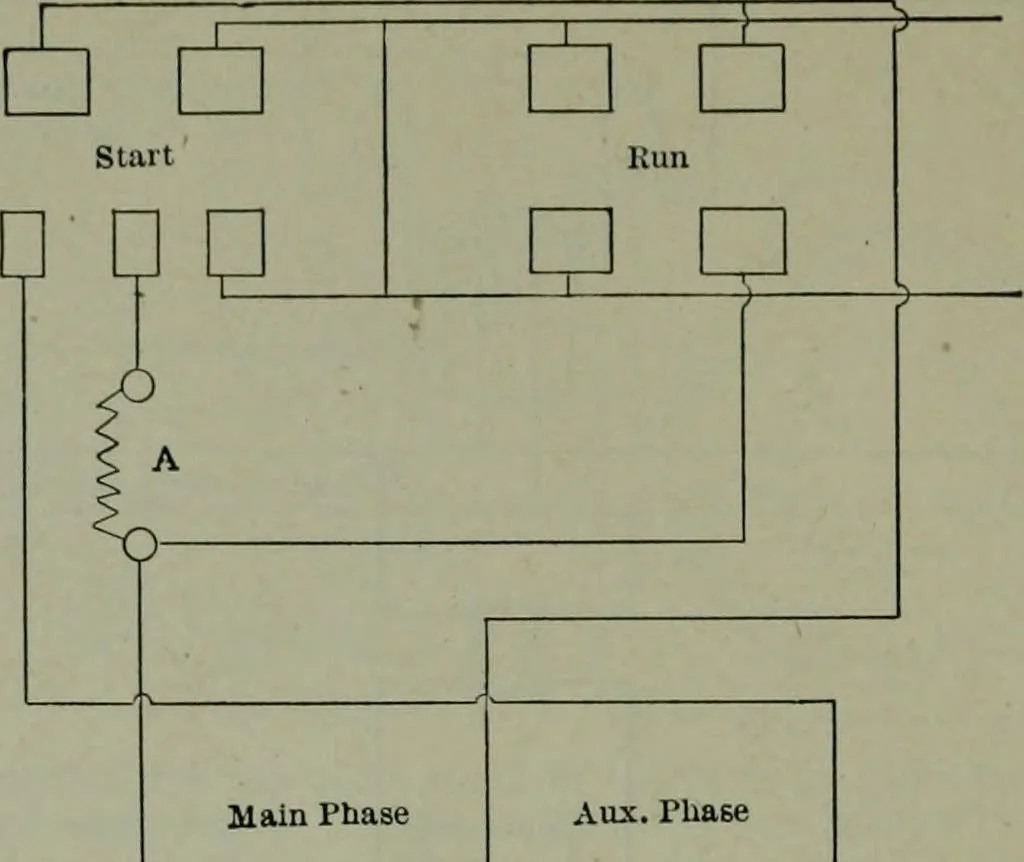

Fig. 182.—Arrangement of apparatus for starting split-phase motor shown in Fig. 181. S Start ? t] [^ 9 9 k Main Thase —5k- FiG. 183.—Connections of starting switch for single-phase induction motor with two-phasewinding. Resistance, A, is connected across one phase when starting. 112 WIRING DIAGRAMS… … Aux. rUase \/\/\/^/^y\y\/\/^^A^/A^^^ Fig. 184.—Connections of starting switch for single-phase induction motor with two-phasewinding. Resistance, A, is connected in series when starting. pAAAAAAA.
Electric wiring
