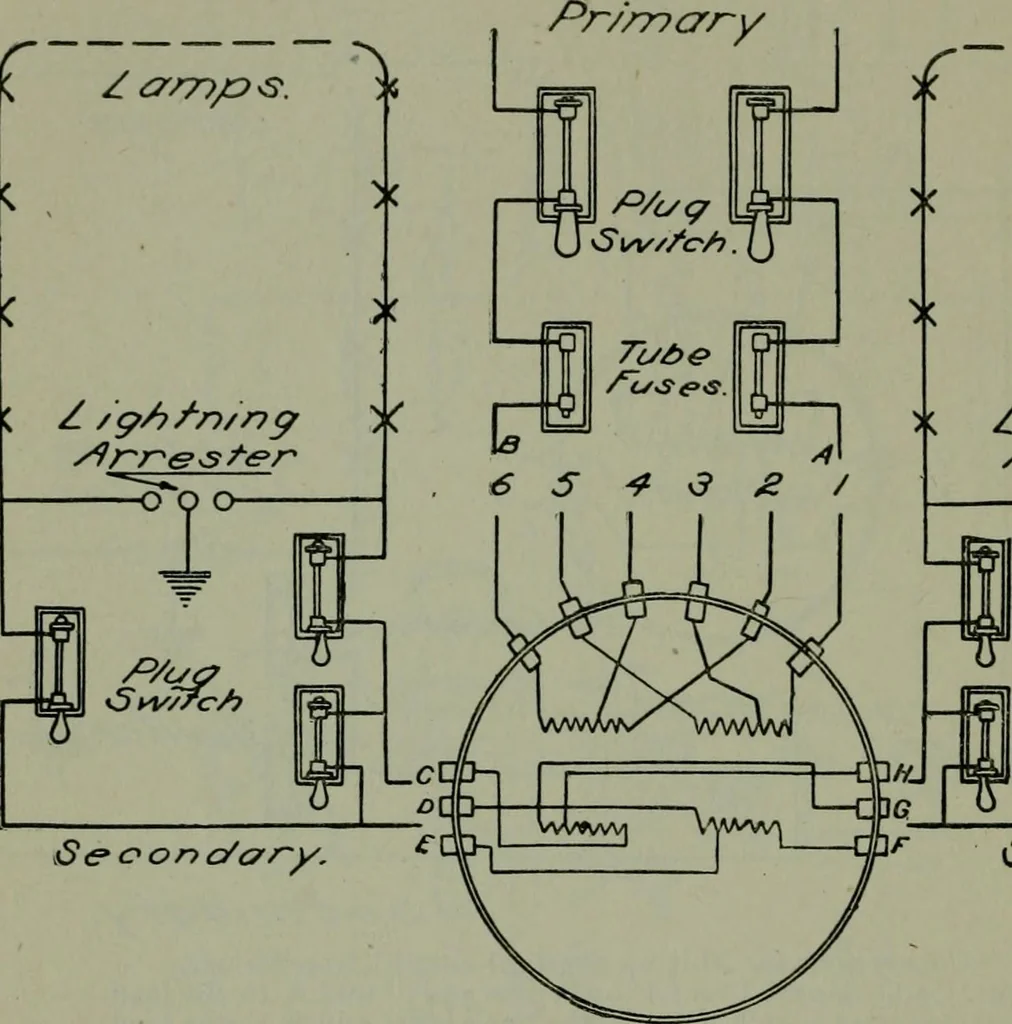

nnections for 50-lamp constant-current transformer.For 60 per cent, load, connect 1 and 4 to the line and J and K to the load.For 70 per cent, load, connect 1 and 4 to the line and H and K to the load.For 80 per cent, load, connect 1 and 4 to the line and G and K to the load.For 90 per cent, load,… … ■^ Lcrmp^. y^ rrs*ySf€>n -^O o-— 1
