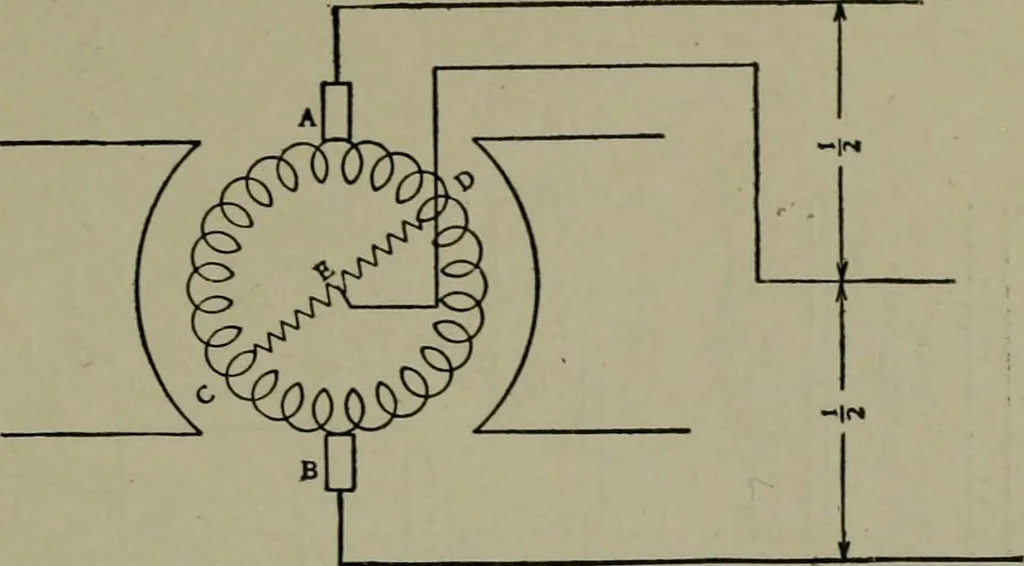

Fig. 8.—Three-wire generator (Dobrowolsky-Westinghouse system). DIRECT CURRENT GENERATORS 5 … Yio. 9.—Schematic diagram of connections for three-wire generator shown in Fig. 8.The e.m.f. between Hnes, that is, between E and A, at any instant is the sum of the e.m.f.generated in the armature between A and D and one-half of the e.m.f. impressed across thebalancing coils, CD.
