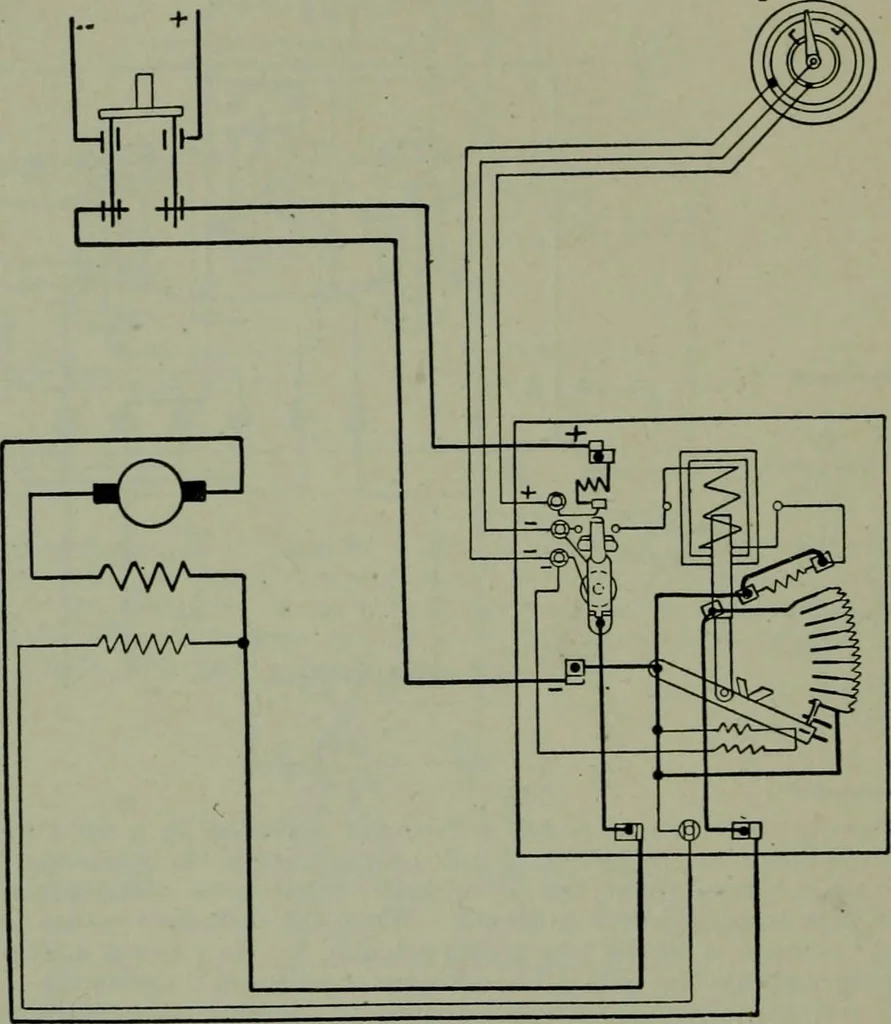

lenoid 1. In closing, solenoid 1 connects thewinding of solenoid 2 across the line. The plunger of solenoid 2 opens the contact arm a2, in-serting solenoid 3 in circuit, which in turn opens contact as, inserting the resistance, r, in series withthe windings 2 and 3. When the pressure reaches a… … Fig. 246.—Connections for a self-starter of the sliding-contact type operated with anauxihary electromagnet controlled by a pressure regulator of the type described in Fig. 245.The operation is the same as the starter shown in Fig. 243, except that the auxiliary magnet isarranged to hold itself in…
