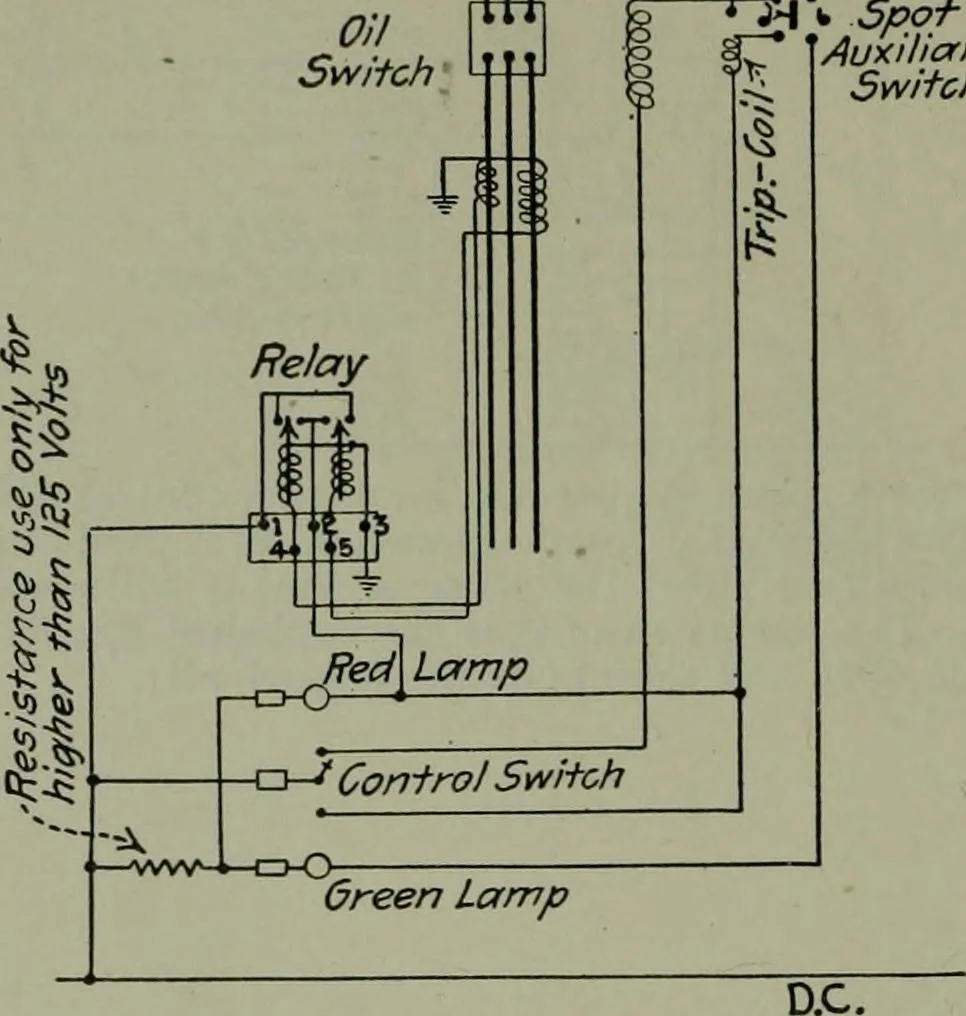

switches. The operation of the openingcoil A moves the auxiliary switch S to the left (a side), and the operation of the closing coil Bmoves it to the right (& side). The connections are such that both switches cannot be closedat the same time. When the closing coils B are operated, they… … Fig. 356.—Controlling circuit for a solenoid-operated oil switch. CJosirjtCoil
