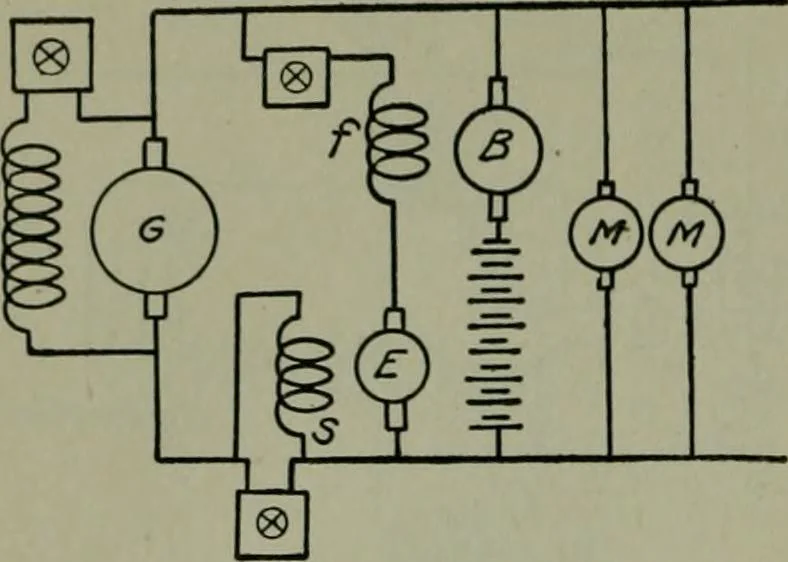

Fig. 121.—Connections for a reversible-automatic booster system. The series field, S, opposes the generator e.m.f. 78 WIRIN<i: DIAGRAMS OF ELECTRICAL APPARATUS
