The wonders of modern mechanism. A résumé of recent progress in mechanical, physical, and engineering science (1896)
Cochrane, Charles Henry, 1856- · Philadelphia J.B. Lippincott · leaf 392

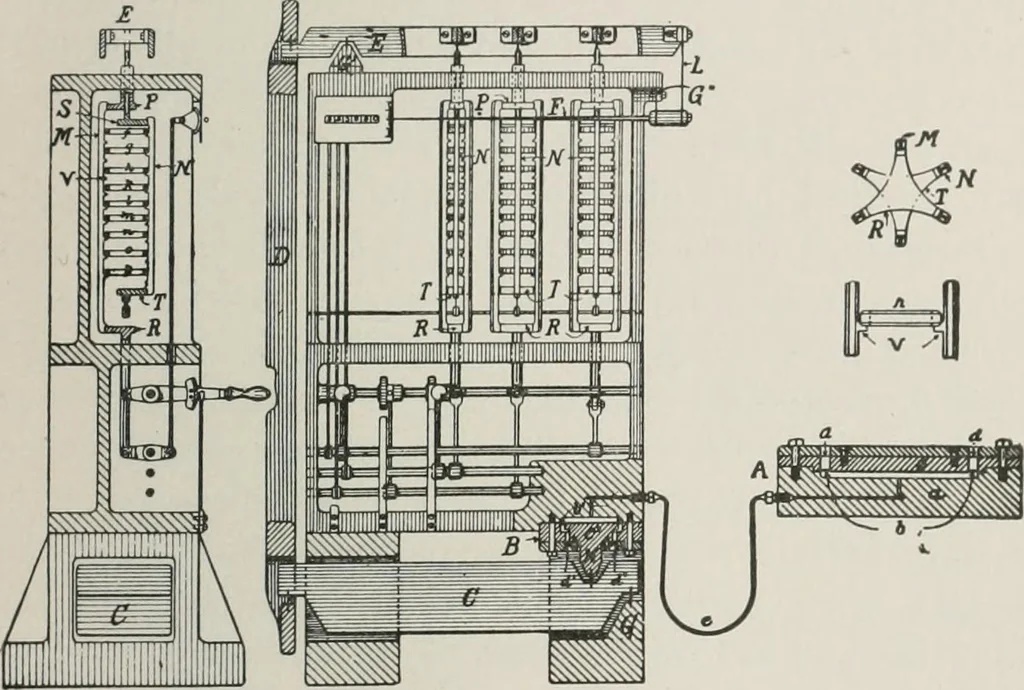

bsolutelytight cylinder operating without appreciable friction arevery ingenious, and wall be understood by examining theaccompanying diagram of the weighing mechanism. A isthe hydraulic-support cylinder, the white space represent- THE EMERY TESTING-MACHINE. 383 ing water; c is the piston, and 6… … DETAILS OF WEIGHING MECHANISM. inch, which is all the motion needed between a full loadand no load. By this arrangement the fluid is entirelyenclosed, and no packing is required, and the friction is allin the fluid. A tube connects the water-chamber of thehydraulic support with a smaller and…
Inventions · Mechanical engineering · Machinery
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
