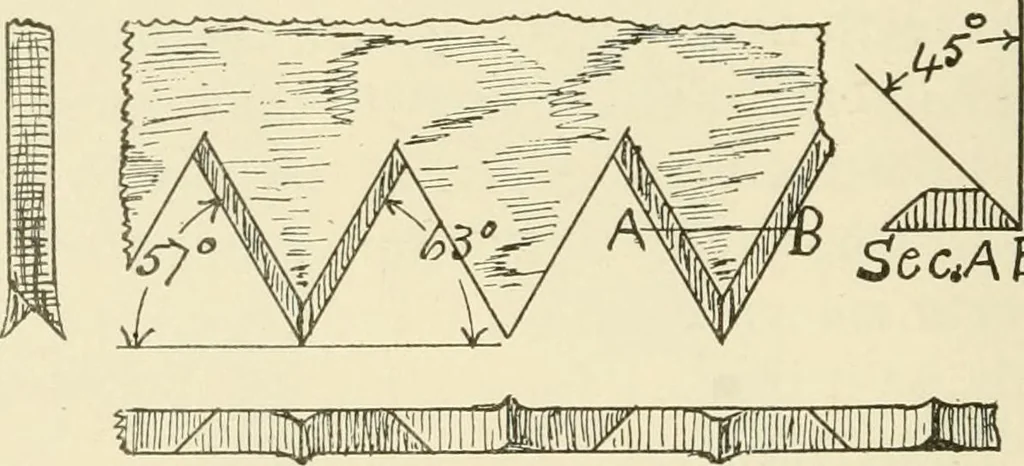

Fig. 23. The different angles most suitable for general work arealso indicated in the same figures, Fig. 23 representingthe teeth for a rip saw and Fig. 24 the teeth fora cross cutting saw. These should be varied according to the kind of wood; they should be less acute forhard wood and more acute… … ^6CAB Fig. 24. and compass saws are filled with a combination of theseangles. In fitting or sharpening a saw for use, there are fourdistinct operations to be performed: 1. It must be top-jointed; that is, a file should be passed along the tops of APPENDIX 181 the teeth, so that they may all be of…
Patternmaking
