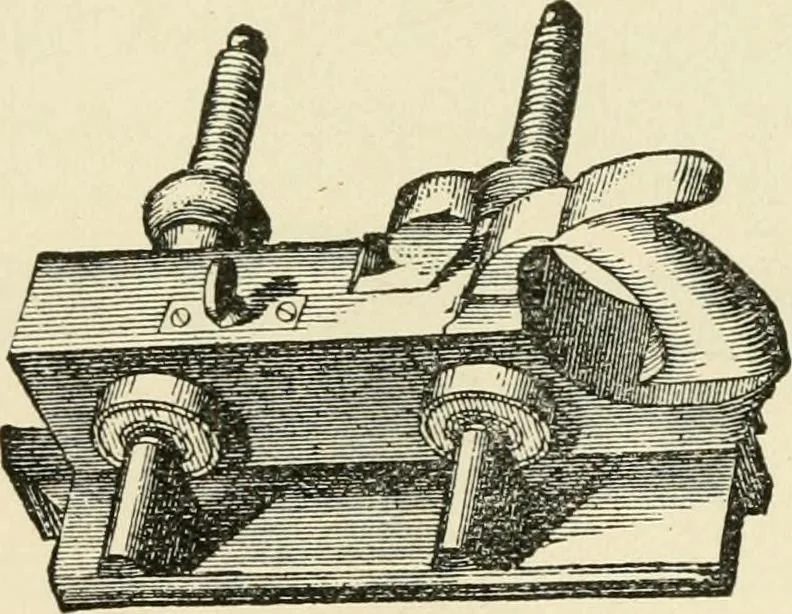

An illustration from Wood pattern-making; the fundamental principles and elementary practice of the art, 1906, leaf 208 — Fig. 41 considerable width the plane may be worked both waysand not carried clear across. Another plane that is very useful to wood-workersis shown at Fig. 41, called a rcbatC plane. The iron is … Fig. 42 set asRcw in the plane and extends the wholelwldthlof theface. It is used for cutting a rectangular spacecalled arebate, into the corner of a piece of wood. This wordhas been corrupted into rabbit. 194 WOOD PATTERN MAKING Another plane-like tool is illustrated by Fi^. 42.This is the…
