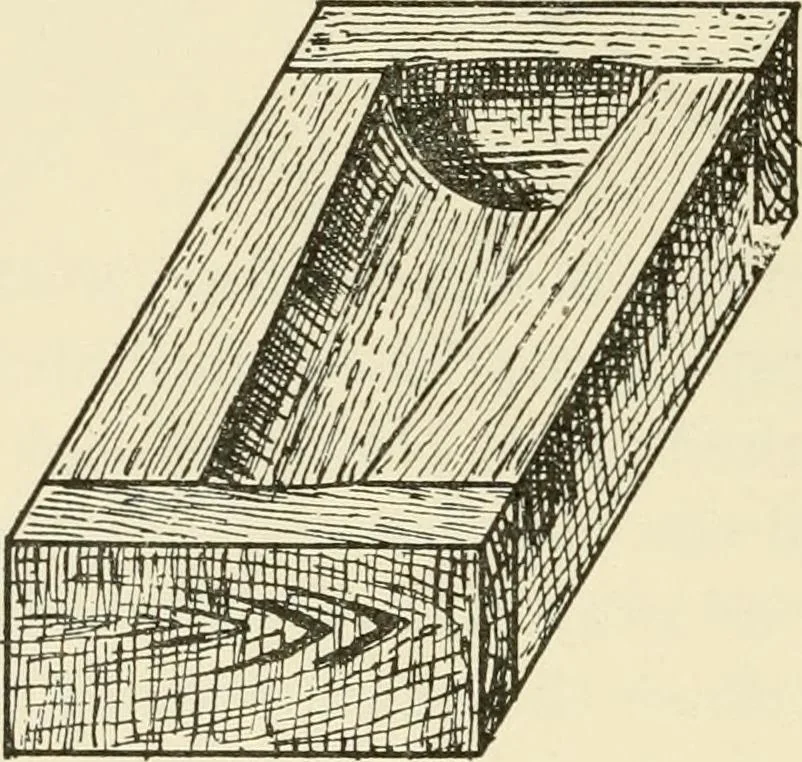

as indicated by Fig. 41, it will cut thegroove too large, making the core box larger in diameterthan wanted. Another way to cut out this part of thecore box is to use a gouge to remove almost all thematerial, using a round plane to finish with. Doing thejob in this way will involve the use of a… … Fig. 41(a).It will be a great advantage to set the cutting iron soit will cut the wood on one side of the plane only. Inorder to do this it is best to cut away a small amount ofwood on one side of the plane, as indicated at A Fig. 40.This plane is almost indispensable for making core boxesof the…
Patternmaking
