Woodwork for the grades for use in manual training classes (1912)
Selden, Frank Henry · Valley City, N.D., The Maudslay press · leaf 177

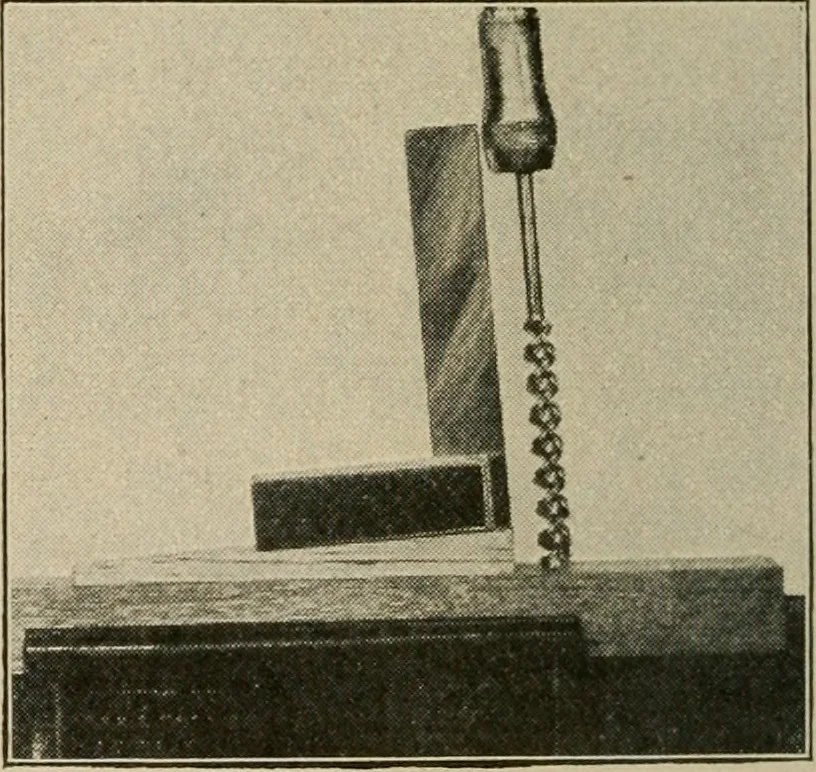

ig. 244 shows how the piece is used in boring the holes.As a matter of convenience the piece is slotted at each end so it will slip over the trysquare blade. Whether the wide or nar-row end is over the blade is determined by the line to be drawn. Always place the head of the trysquare or tapered… … Fig. 244 —Boring a Hole at an A ngle WOODWORK FOR THE GRADES 175 draw the slanting lines on the sides. In squaring the end forputting together it maybe tested with the try-square and taperedblock and also by measuring from the extreme outside corners.If it is not square it may be sprung to place…
Woodwork (Manual training)
