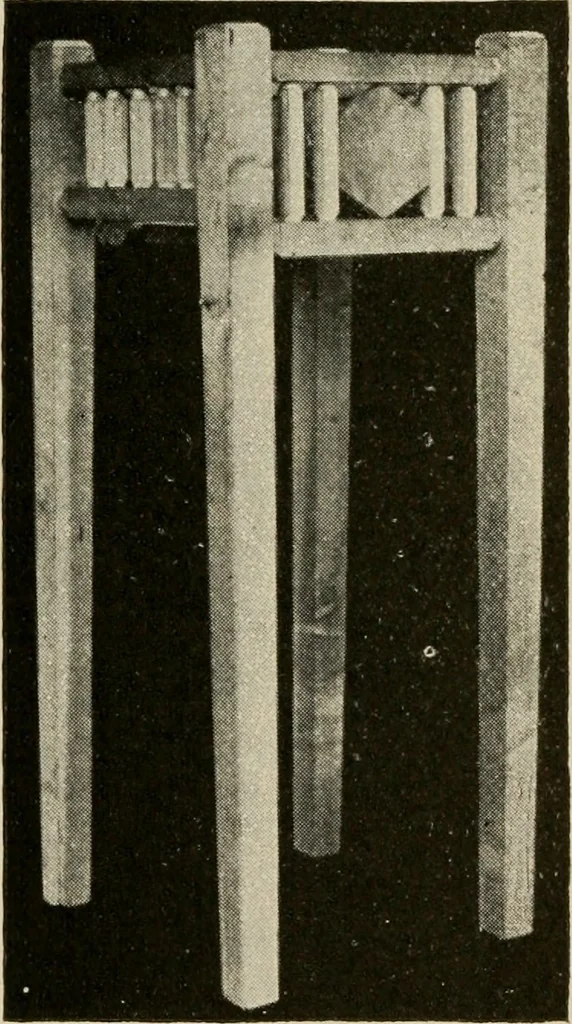

e compasses to one-half the space between the rodsand strike a circle (Fig. 247).Notice that the compasses areheld near the top. Draw thediameter A-B (Fig. 248) eitherwith or across the grain. Withthe compasses set at the samespace as in striking the circle placeone leg at the point A and mark the… … Fig. 245—Plant Stand WOODWORK FOR THE GRADES 177 Q *ift /2 r- ^ </l* -9- */£»« o in u Fig. 246 jk.Jk.LJ ,\\\ i II i Kl draw the other arc at F. If these last arcs cross the circle atexactly the same points as the first ones you can consider thepoints correctlylocated. Con-nect these…
