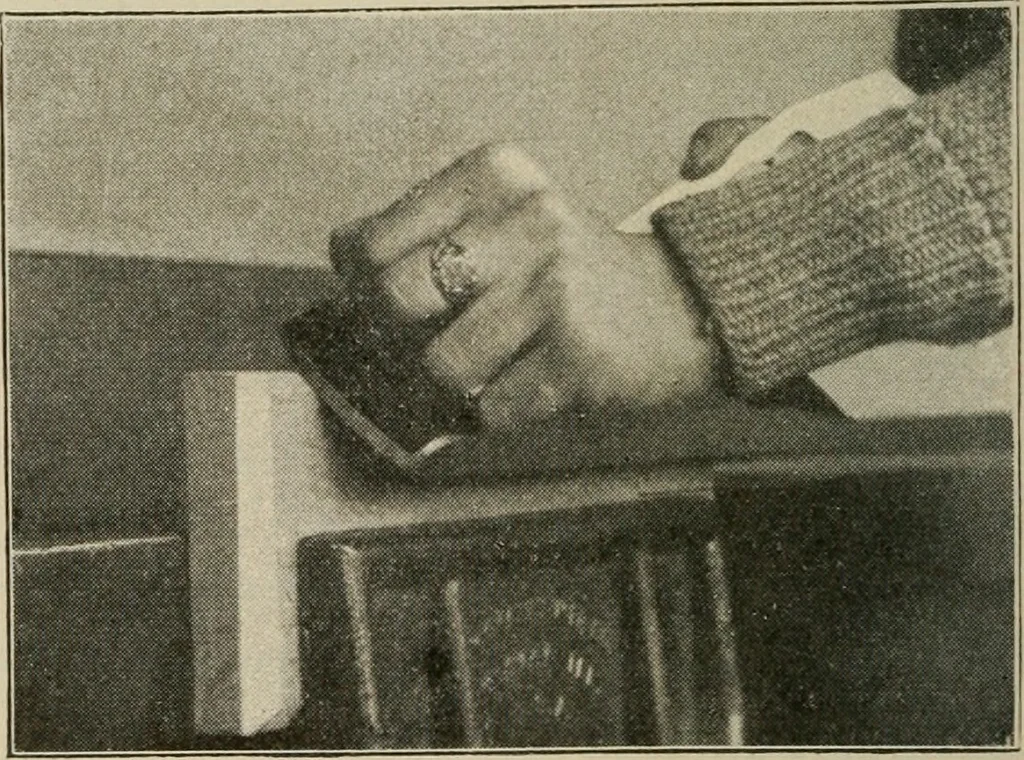

Fig. 84—Testing Chamfer from line to line.Test it with the bladeof the try-square asshown in Fig. 84. Be careful not toplane beyond thelines; rather leaveabout half the widthof each line. After chamferingeach end, place thepiece as shown inFig. 85 and chamferthe edges. In working the edges, the… … Fig. 85 Chamfering Edge WOODWORK FOR THE GRADES 77 moved parallel with the edge. After both edges have beenfinished and tested as shown in Fig. 84, test all the chamfersby measuring,Fig. 86. Theyshould all beof the samewidth; if theyvary, see if youcan find themistake andcorrect it. Donot fail to…
