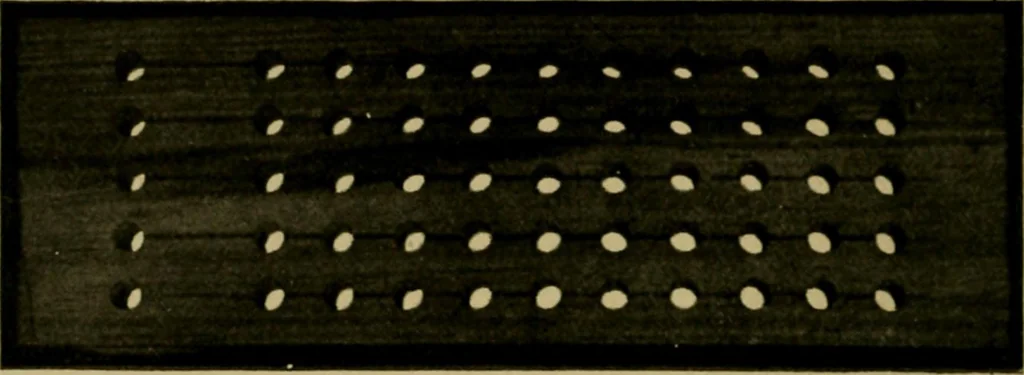

scarcely more than a study piece,for such boards are so seldom used that their value is reallynothing. As a study piece the counting board is of considerablevalue if it is made according to the drawing. (Fig. 136.)Do not make it less than 11 inches long, for if you attempt to 106 WOODWORK FOR THE… … Fig. 135—Counting Board If you have been very successful in end planing you cancut the corners as indicated by the dotted line on the draw-ing. If you wish to do this, read all that is said about cuttingcorners in Lesson 29. h - //!— —* Hfl / O O O C+O O O O O O O O O O O^O O O O O O o O…
