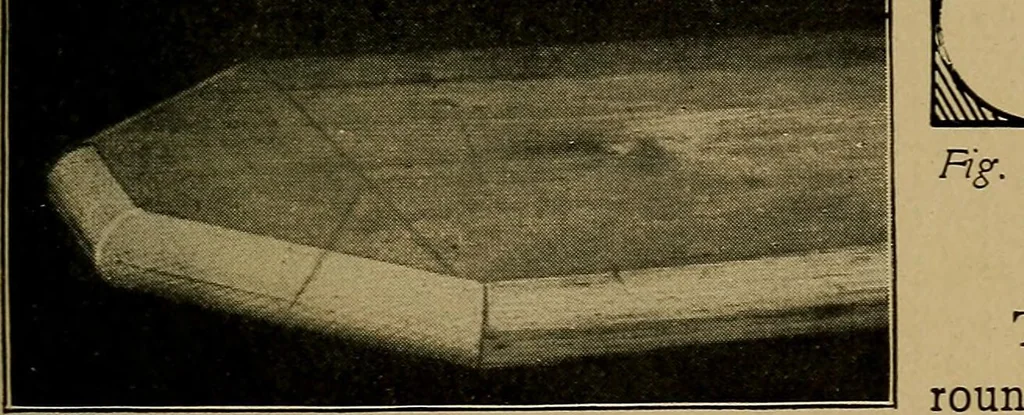

148 -Plar: WOODWORK FOR THE GRADES 113 LESSON 30 ROUNDING AN EDGE Fig. 149 is a view of a rounded edge. Such edges maybe used on boxes and many other articles as well as on thebreadboard. (Fig. 143.) To round the edge, after it has been squared, draw apencil line along the center with a gauge and a… … Fig. 149—Rounded Edge Fig. 150—Section ofRound Edge The difficulty inrounding an edge isthe opposite of thatin chamfering.While making a chamfer you found it difficult to make the sur-face straight from line to line; in making the rounded edge, youwill make it too straight, unless you attend…
