Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 124

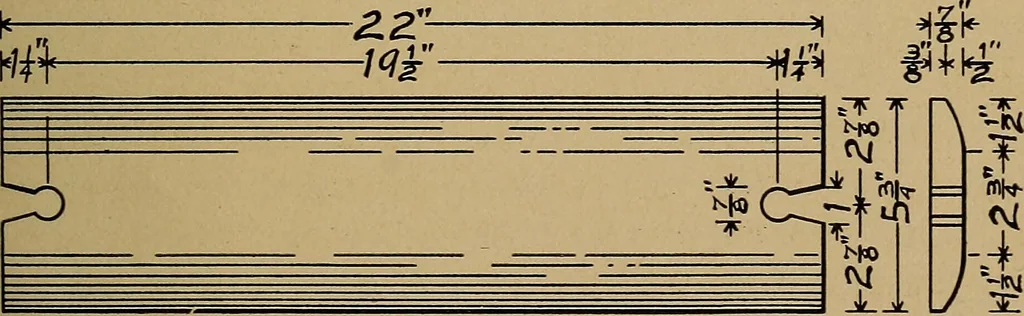

wn in Fig. 161. WOODWORK FOR THE GRADES 121 LESSON 34 SWING BOARD A swing board though apparently a simple thing to makeand one which can be undertaken at any time is by no meansas simple as it appears and should not be undertaken until allthe work up to Lesson 29 has been successfully… … Fig. 1 65—Swing Board 122 WOODWORK FOR THE GRADES on the two edges }z inch from the face-surface and on theface surface \yz inches from each edge. These lines are atthe edges of the shaded portion in the drawing, (Fig. 165).Form the edges by planing, following the directions for round-ing edges…
