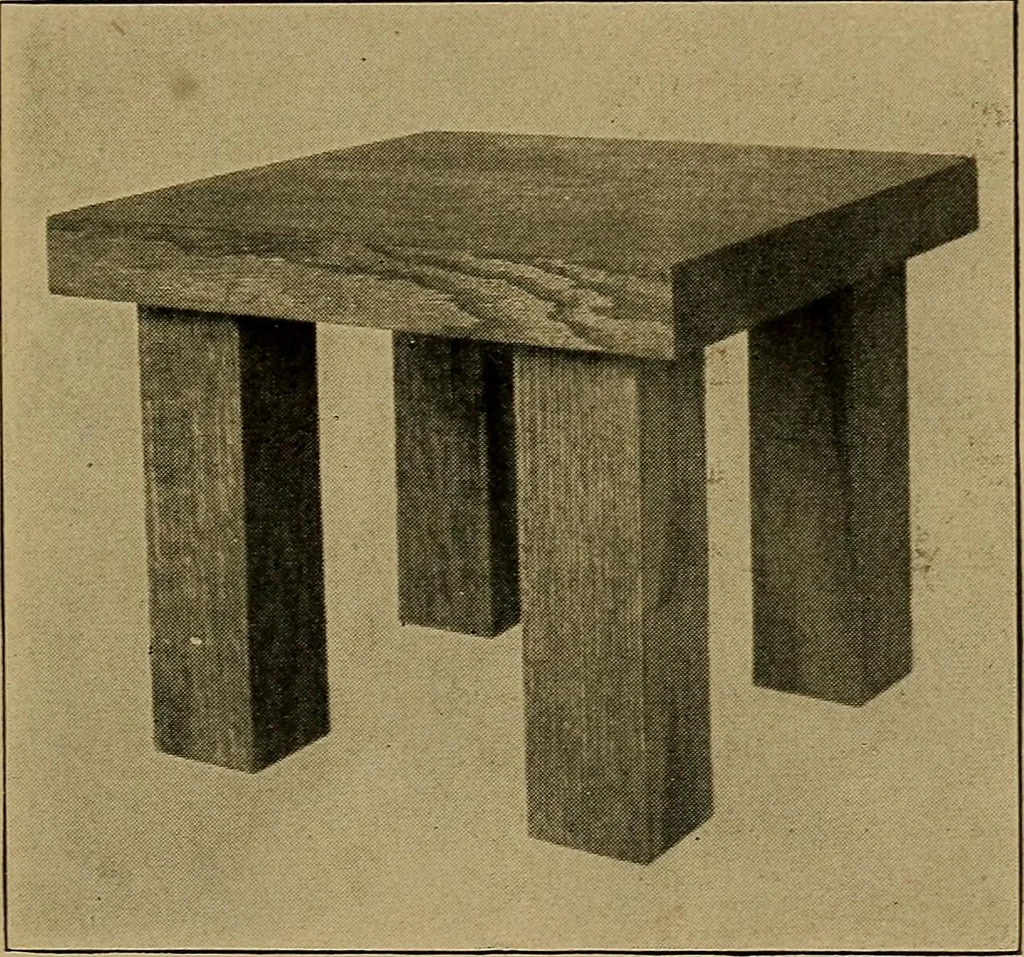

g themarks clearly onboth the legs andthe top. Also number each leg and the corresponding placeon the top so as to replace them in the same positions. Set the gauge to each mark as shown in Fig. 168 anddraw lines across the ends of the legs. Place the knife pointin each mark on the top and draw… … Fig. 1 66—Footstool 124 WOODWORK FOR THE GRADES a mark from the spur of the bit. Bore the holes in the endsof the legs about 2 inches deep. Glue the dowels into the top and allow the glue to dry, thenglue them into the legs. Fig.170 shows them in place and theleg ready to be driven down tightto the…
