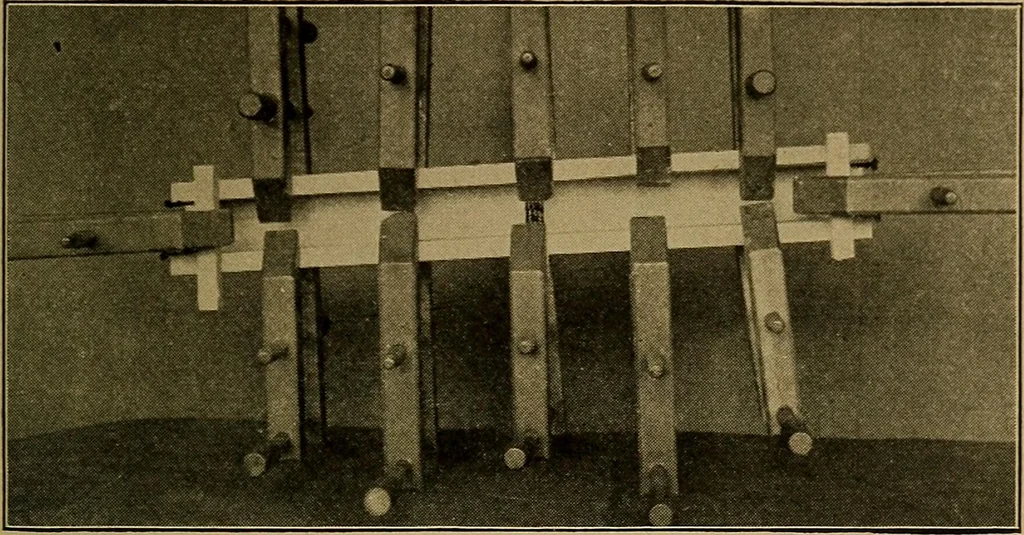

a size a little largerthan the finished top. A narrowfacing strip is then fitted and gluedto the under surface of the top evenwith the straight edge, (Fig. 206). The two end facings are nextfitted. These are cut so that thegrain will be parallel with the grainof the top. They are clamped asshown in… … Fig. 205 — Clamping Column The last fac-ing strip is fittedand clamped asshown in Fig.208. After the partshave dried, thetop is worked thesame as a singlethick piece.The piece on the top end of the . • , Fig. 206—Facing Strip Clamped column may be of any size which will go between the facing strips…
