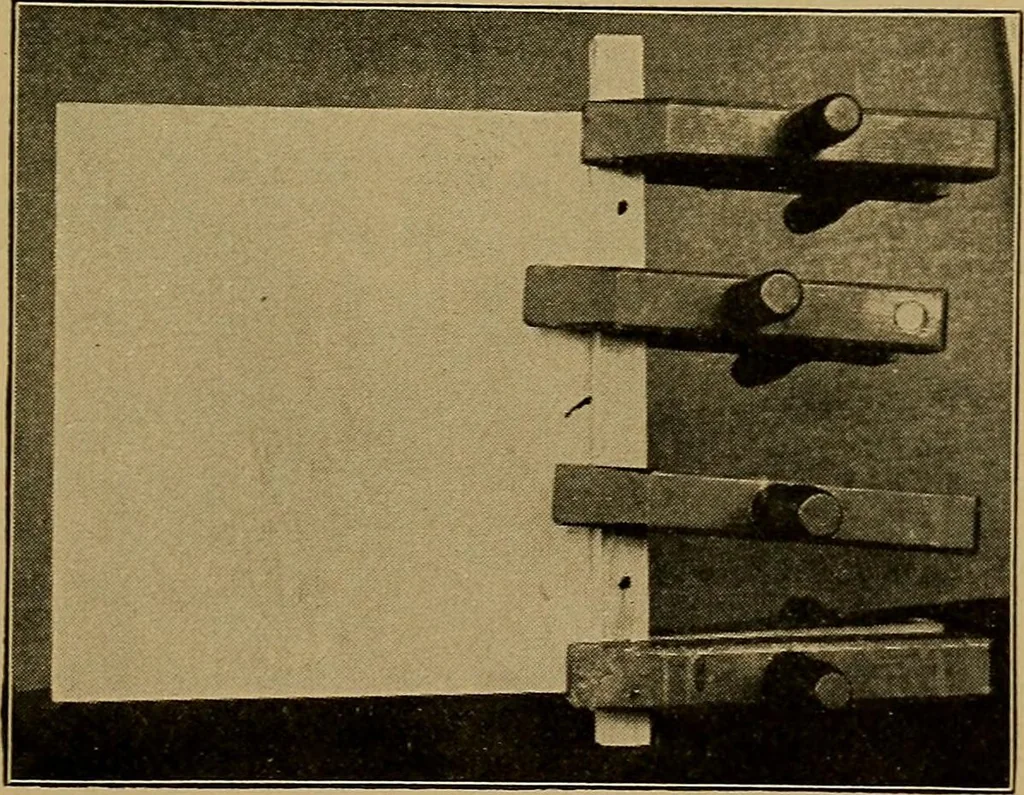

Fig. 205 — Clamping Column The last fac-ing strip is fittedand clamped asshown in Fig.208. After the partshave dried, thetop is worked thesame as a singlethick piece.The piece on the top end of the . • , Fig. 206—Facing Strip Clamped column may be of any size which will go between the facing strips… … 150 WOODWORK FOR THE GRADES receive the screws, therefore do not plane it except to make itof equal thickness throughout. There should be three or fourscrews through the piece into the top of the column and asmany more up through the board into the pedestal top. Invery cheap work, nails may be used…
