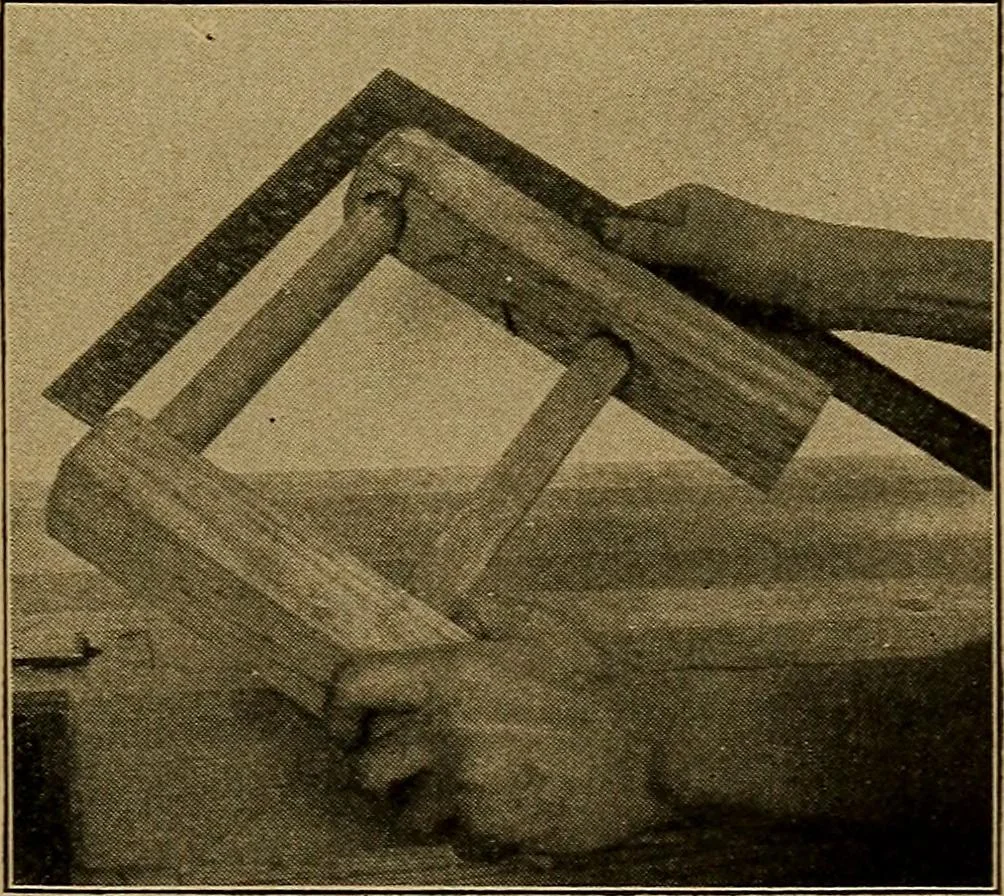

After the parts have allthe rungs for the twoopposite sides and putthem together; if theyare right, separate themand apply glue. Allowthe glue to becomenearly glazed and thenforce the pieces to-gether by clamping. Bevery careful to test yourwork at each stage bylooking for wind (Fig.189). Apply the… … Fig. 222— Testing with Framing Square 160 WOODWORK FOR THE GRADES square as in Figs. 219, 220 and 221. The framing square maybe applied as in Fig. 222. You may be able to press the parts together without usingany clamps but do nottry to drive them to-gether. By referringto Fig. 229 you willlearn…
