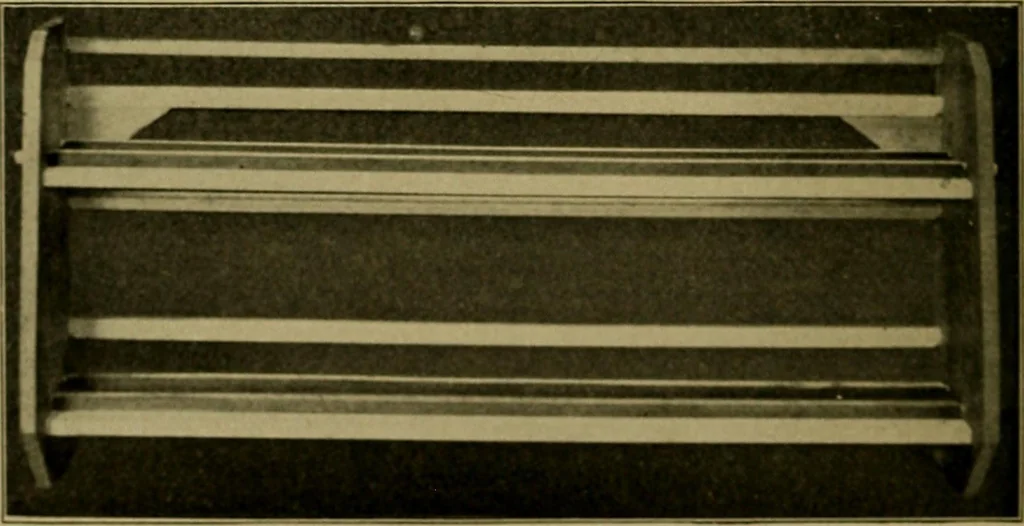

, Fig. 236, shows the rails projecting throughthe end piece. Round pins are used to hold the rails in place.These pins may be flattened on one side. In this case theholes are bored so that a part of each hole is covered by theend piece. To insure the holes being in the center of the rodsor rails… … Fig. 237—Mate Rack WOODWORK FOR THE GRADES 171 securely glued and screwed to the end and cross-rod and to theshelf so that there will be no possibility of their becoming
