Woodwork for the grades, for use in manual training classes; fully illustrated with three hundred half-tone engravings from actual shop practice, and many working drawings of educational shop problems (1913)
Selden, Frank Henry · Chicago, Orr & Lockett Hardware Co · leaf 179

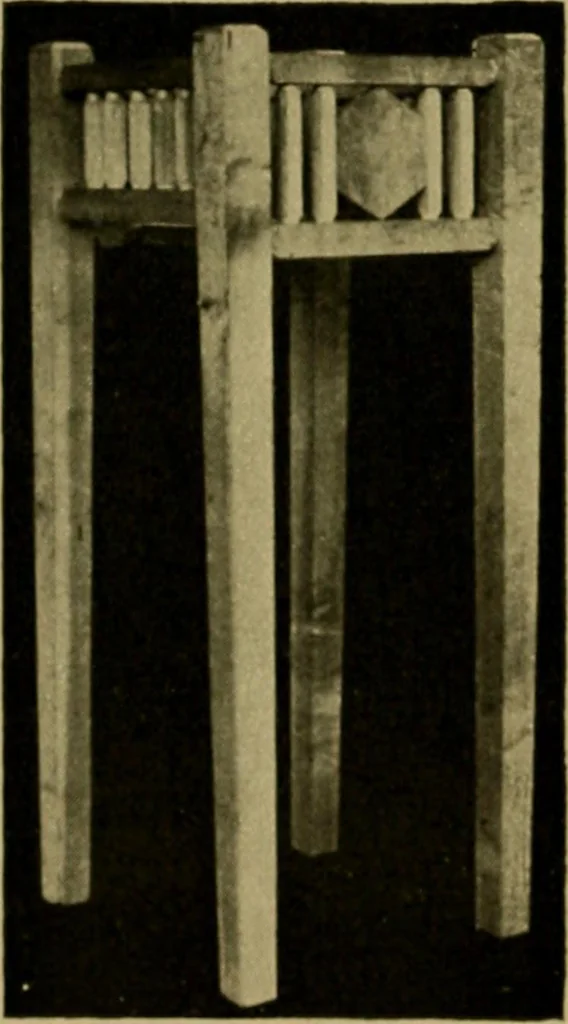

t the compasses to one-half the space between the rodsand strike a circle (Fig. 247).Notice that the compasses areheld near the top. Draw thediameter A-B (Fig. 248) eitherwith or across the grain. Withthe compasses set at the samespace as in striking the circle placeone leg at the point A and mark… … Fig. 245 -Plant Stand WOODWORK FOR THE GRADES 177 S ifo. draw the other arc at F. If these last arcs cross the circle atexactly the same points as the first ones you can consider thepoints correctlylocated. Con-nect these pointscompleting thehexagon. Drawknife lines to workto and saw and -N i bi-…
